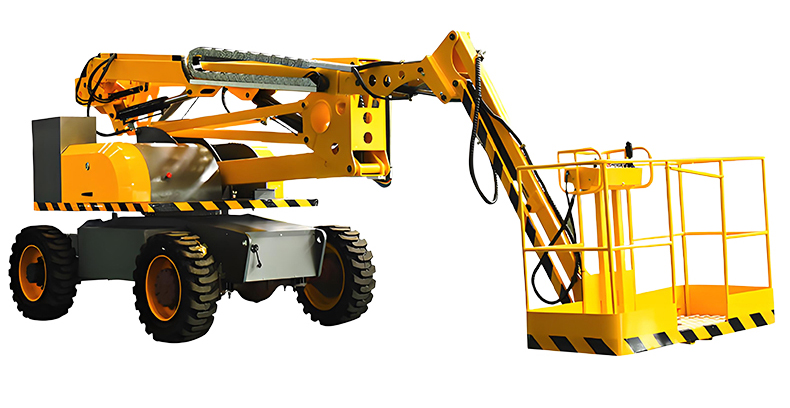

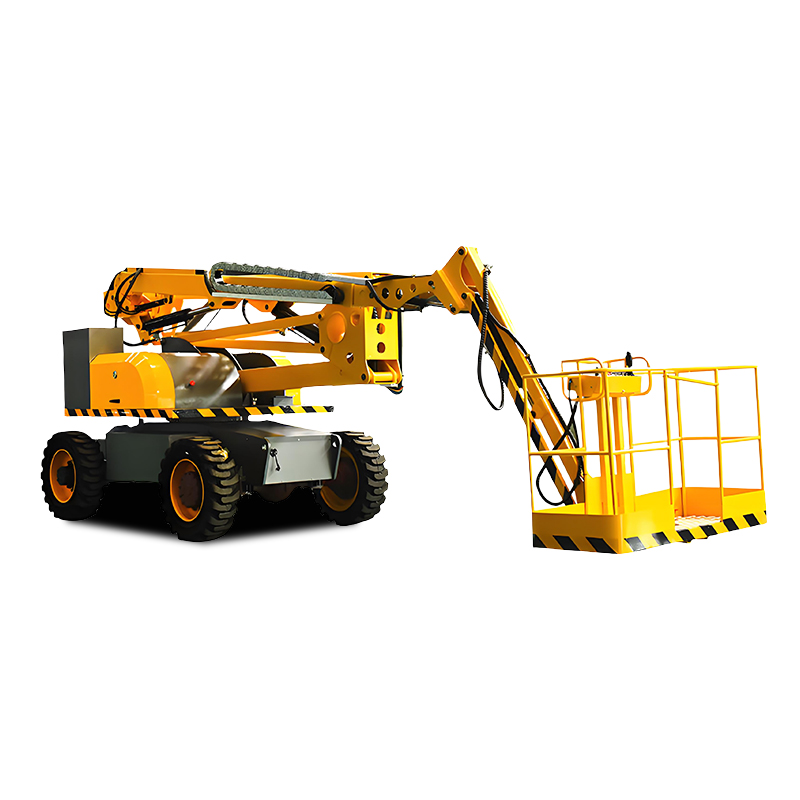

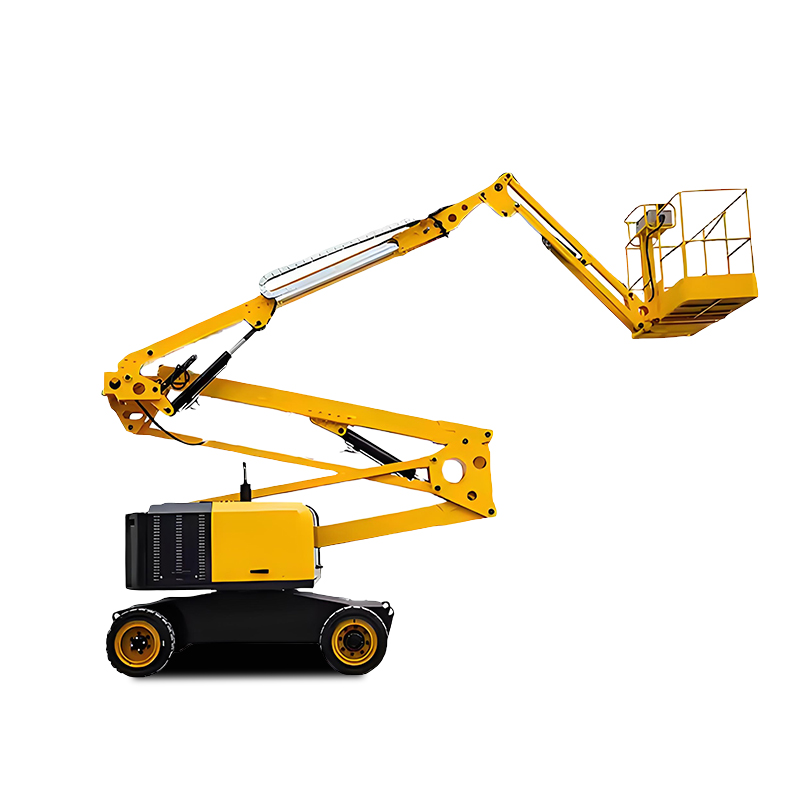

The 18-meter self-propelled articulated boom lift platform is specially designed for high-altitude operations. With a working height of 18 meters and a maximum load capacity of 230 kilograms, it features a 360-degree rotation function. It is powered by either electric or diesel engines and is suitable for various scenarios such as construction, industry, and landscaping, offering flexible, stable, and safe operation solutions.
The 18-meter self-propelled articulated boom lift platform is widely used in construction, municipal engineering, power communication, garden advertising, venues and airports, ports, and large industrial and mining enterprises. It offers flexible obstacle-crossing solutions and efficient operation plans, and is suitable for complex high-altitude tasks.
Model | MY16E | MY18E | MY20E | MY22E |
Specifications | ||||
Max.Working height | 16.58m | 18m | 20m | 22m |
Max.Platform height | 14.58m | 16m | 18m | 20m |
Max.up and over clearance | 7.86m | 7.86m | 11.6m | 12.9m |
Max.Working radius | 8.45m | 10m | 8.2m | 8.54m |
D Platform width | 0.76m | 0.76m | 0.9m | 0.9m |
E Platform length | 1.83m | 1.83m | 2.4m | 2.4m |
B Height -stowed | 2.32m | 2.32m | 2.53m | 2.53m |
A Length -stowed | 6.85m | 7.68m | 8.9m | 8.9m |
C Width | 2.32m | 2.32m | 2.45m | 2.45m |
Wheelbase | 2.36m | 2.36m | 2.5m | 2.5m |
Ground clearance-center | 0.3m | 0.3m | 0.33m | 0.33m |
Productivity | ||||
Max.Lift capacity | 256kg/350kg | 256kg/350kg | 250kg | 250kg |
Number of platform occupants | 2/3 | 2/3 | 2 | 2 |
Platform rotation | ±80° | ±80° | ±80° | ±90° |
Turntable rotation | 355° | 355° | 355° | 355° |
Drive speed-stowed | 0-5.2km/h | 0-5.2km/h | 0-6km/h | 0-6km/h |
Gradeability -stowed | 30% | 30% | 45% | 45% |
Max.Working angle (Tilt sensor activation) | 5° | 5° | 5° | 5° |
Turning radius (outside) | 4.7m | 4.7m | 5.4m | 5.4m |
Drive and steer | 2*2 | 2*2 | 4*4 | 4*4 |
Weight | 7250kg | 8100kg | 8550kg | 9000kg |
Power(Diesel engine selection) | ||||
Battery | 48V/300AhLi | 48V/300AhLi | 8X6V/420Ah | Kubota 36KW |
Control voltage | 12VDC | 12VDC | 12VDC | 12VDC |
Pump motor | 7kw | 7kw | 13 kw | 13kw |
Drive motor | 2*3.3kw | 2*3.3kw | 4*9kw | 4*9kw |
Compliant with standards | EN280 GB/T 25849 | EN280 GB/T 25849 | EN280 GB/T 25849 | EN280 GB/T 25849 |
