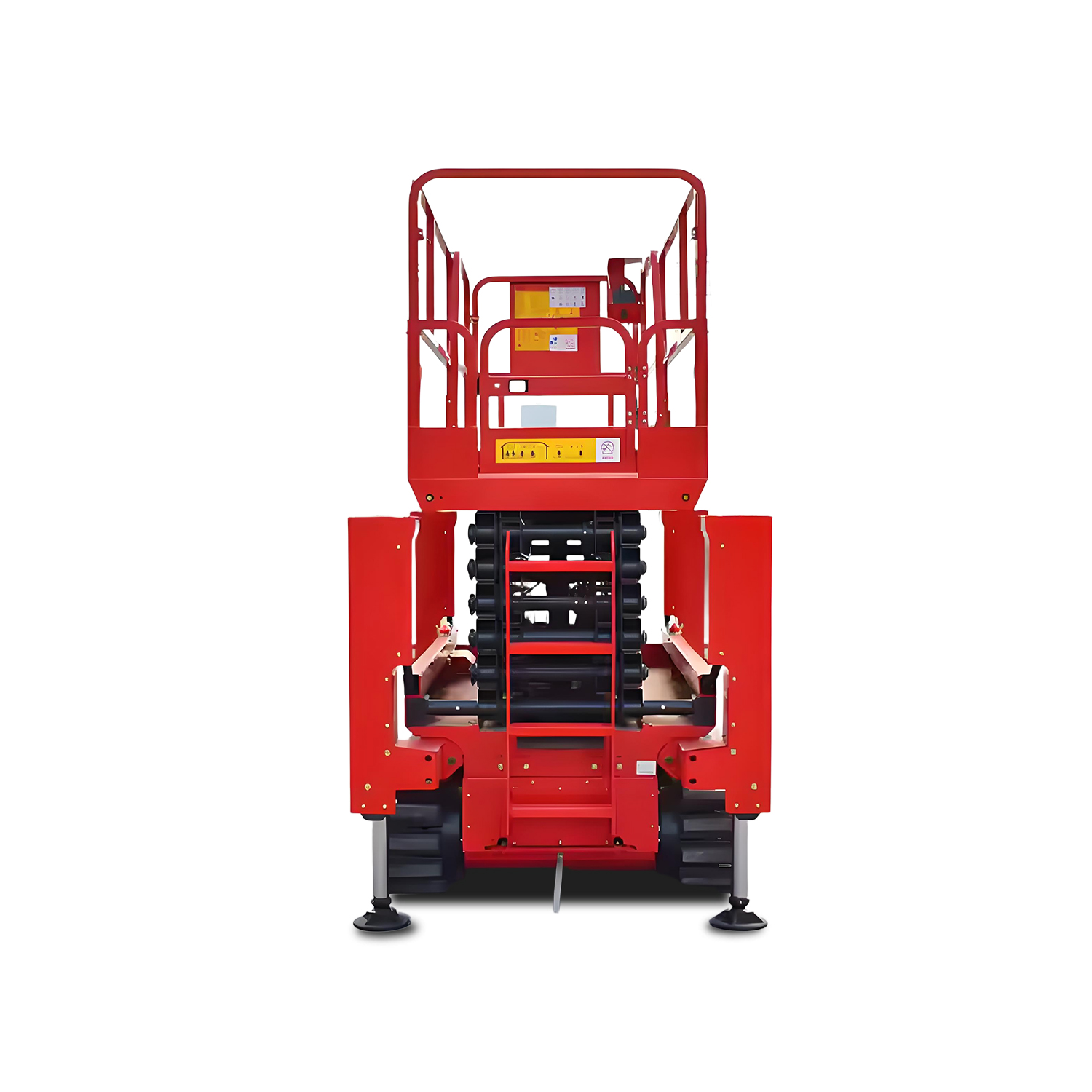

The self-propelled tracked aerial work platform combines mobility and stability, featuring an imported hydraulic system, explosion-proof safety devices, and seamless tracks for adaptive indoor/outdoor terrain movement. Its jib structure allows smooth 6-14m lifting, controlled by a single operator via a stepless speed handle. With a quiet, eco-friendly hydraulic drive, emergency descent, and dual anti-collision protection, it ensures safe operations in stations, factories, and malls for tasks like high-altitude cleaning and maintenance. It boosts efficiency by over 60% compared to traditional scaffolding.

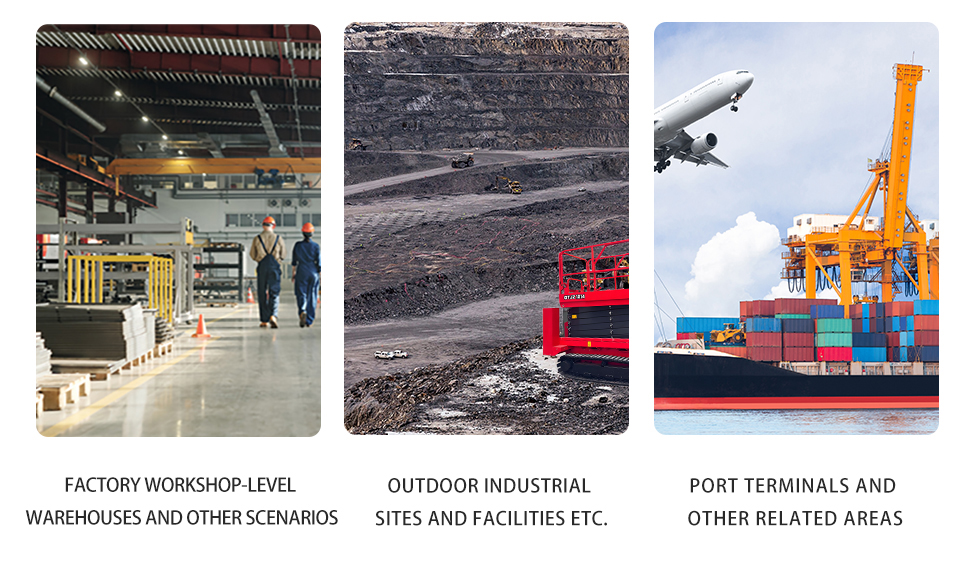

This self-propelled tracked aerial work platform features a crawler design for versatile terrain, including warehouses, stations, and construction sites. Its telescopic structure enables smooth lifting with a 500kg capacity, and its adjustable platform allows seamless truck loading/unloading, supporting forklift operations. Ideal for airport maintenance, mall facade cleaning, industrial park repairs, and logistics cargo handling, it operates quietly indoors and withstands harsh outdoor conditions. Requiring no scaffolding, a single operator can manage lifting, turning, and movement, improving safety and efficiency in municipal, power, and advertising projects.
Model | MPGTJZ0608 | MPGTJZ0810 | MPGTJZ1012 | MPGTJZ1214 | MPGTJZ1416 |
Size | |||||
Maximum working height | 8.0m | 10.0m | 12.0 m | 14.0 m | 15.8m |
Maximum platform height | 6.0m | 8.0m | 10.0m | 12.0m | 13.8m |

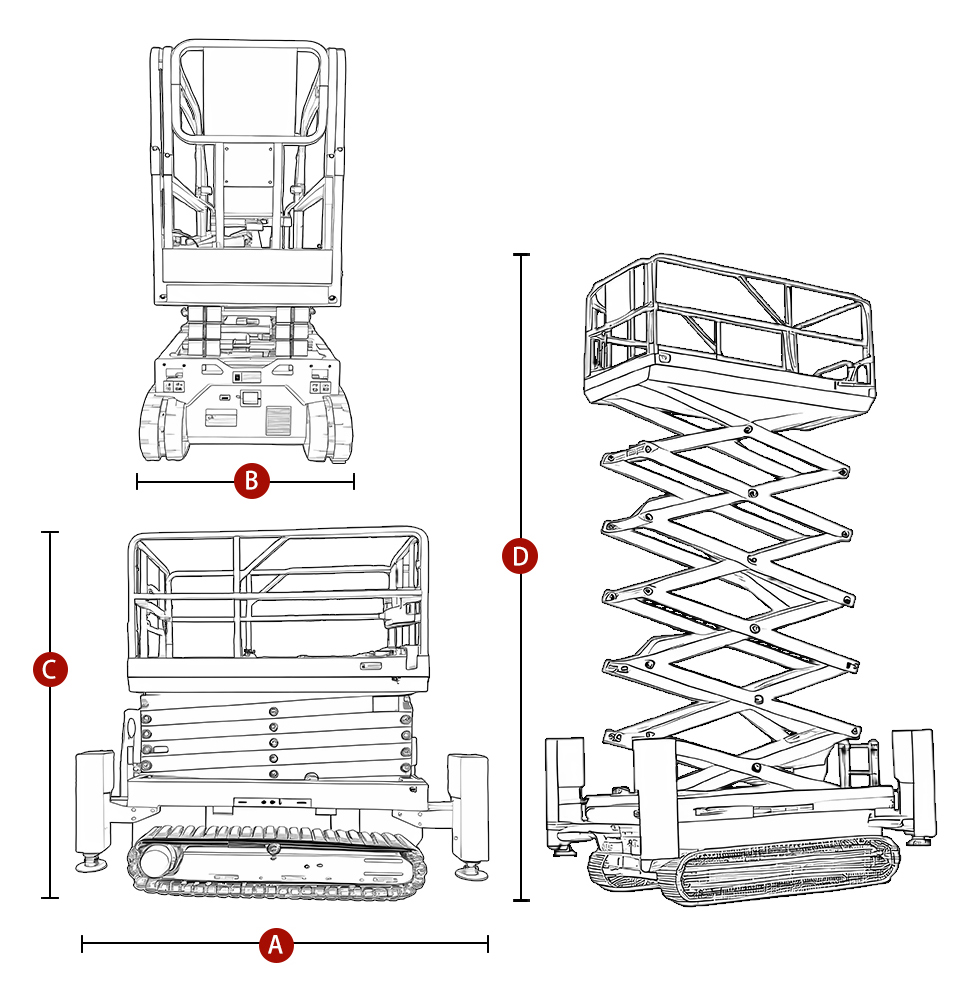

Overall length[A] | 2.78m | 2.78m | 2.78m | 2.78m | 3.18m |
Overall width[B] | 1.57 m | 1.57m | 1.57 m | 1.57 m | 1.60 m |
Overall height(unfolded fence)[D] | 2.35m | 2.47 m | 2.64 m | 2.74 m | 2.74m |
Overall height (folded fence)[C] | 1.8m | 1.9m | 2.1 m | 2.2m | 2.2m |
Work platform dimensions(length × width) | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.63*1.13m |
Platform extension size | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
Wheelbase | / | / | / | / | / |
Ground clearance | / | / | / | / | / |
Performance | |||||
Rated load | 450 kg | 450kg | 320 kg | 320 kg | 227 kg |
Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 110 kg |
Machine travel speed(retracted state) | 1.8 km/h | 1.8km/h | 1.8km/h | 1.8 km/h | 1.8km/h |
Machine travel speed (lifting state) | 0.0 km/h | 0.0 km/h | 0.0 km/h | 0.0 km/h | 0.0 km/h |
Rise/Fall time | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
Maximum gradeability | 25% | 25% | 25% | 25% | 25% |
Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° |
Maximum allowable angle of work (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
Drive | Electric drive | Electric drive | Electric drive | Electric drive | Electric drive |
Tire | Steel track | Steel track | Steel track | Steel track | Steel track |
Power | |||||
Power source | 8*6V/220AH | 8*6V/220AH | 8*6V/220AH | 8*6V/220AH | 8*6V/240AH |
Lifting motor | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW |
Waking motor | 48V/4KW | 48V/4KW | 48V/4KW | 48V/4KW | 48V/4KW |
Charger | 48V/30A | 48V/30A | 48V/30A | 48V/30A | 48V/30A |
Weight | |||||
Overall weight | 2770 kg | 2970 kg | 3270 kg | 3680 kg | 3990 kg |
