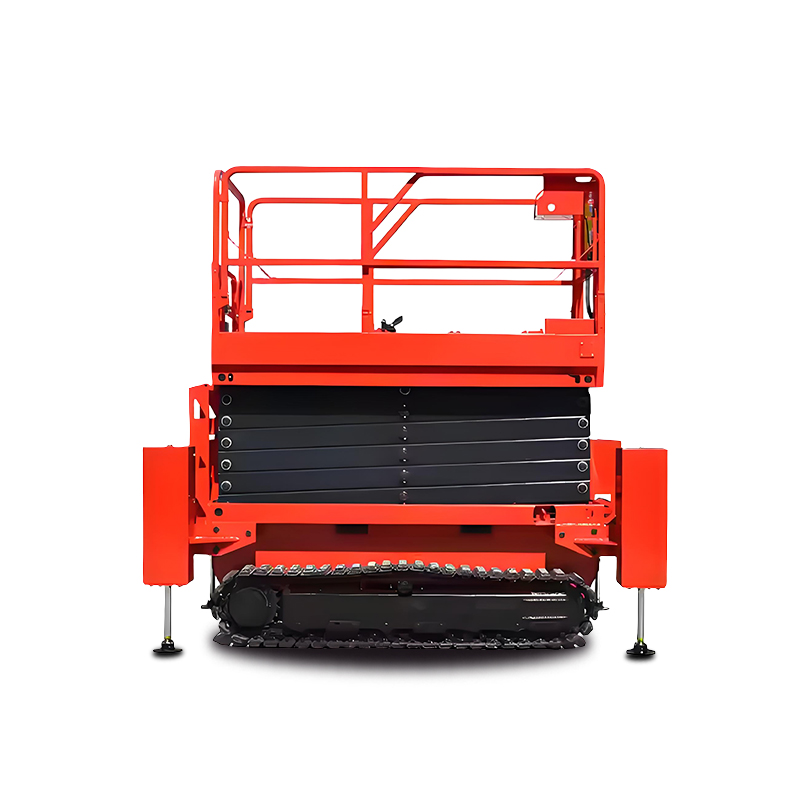

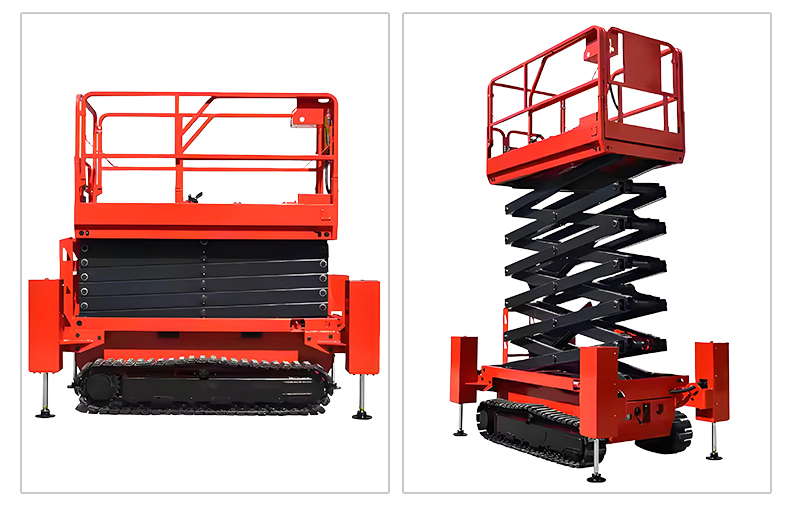

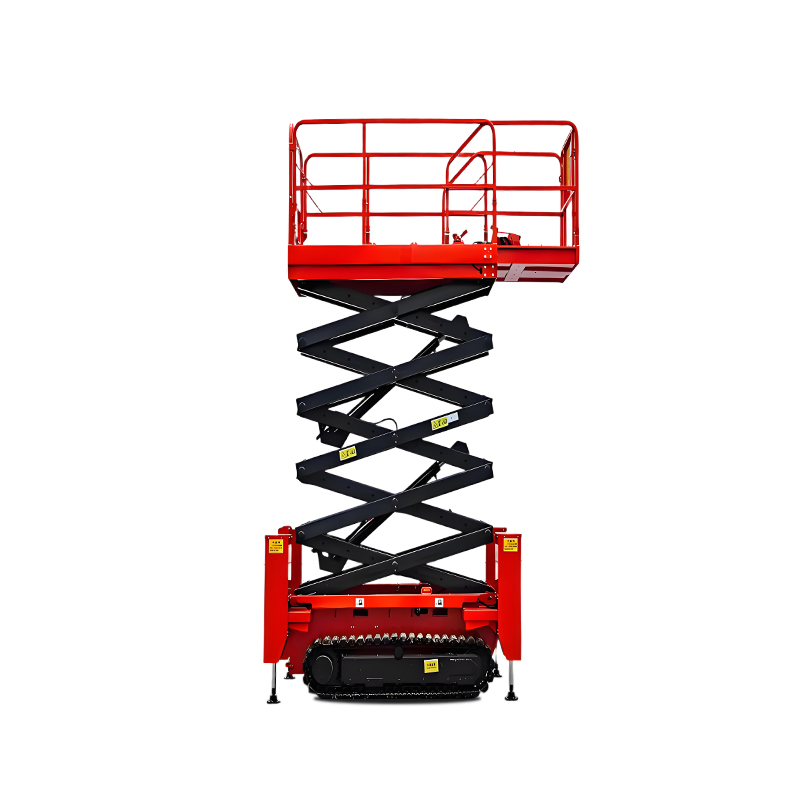

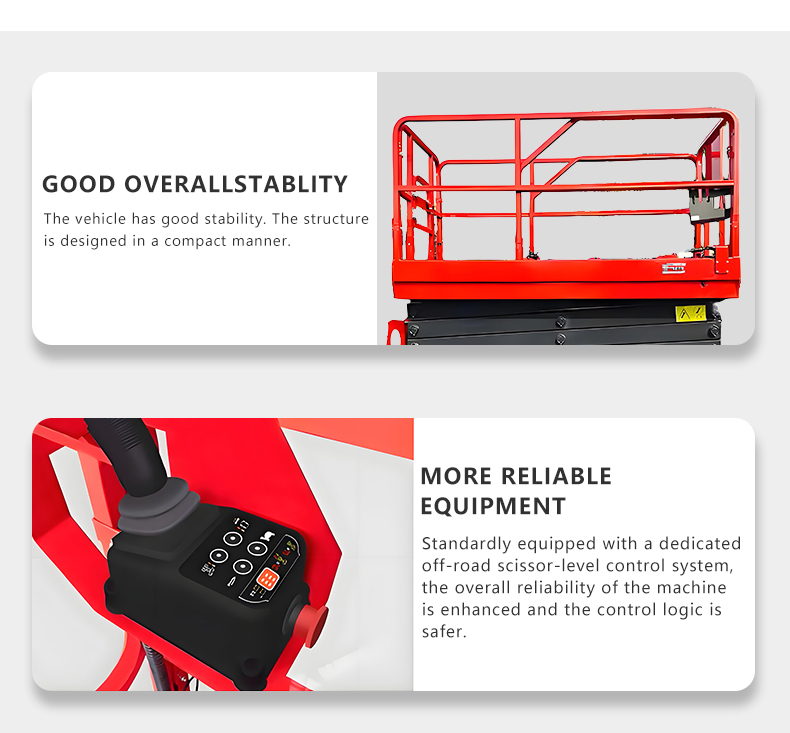

This agile platform combines crawler mobility with hydraulic jib stability, offering a 450kg capacity for construction and warehousing tasks. Its self-propelled design enables quick positioning, while the intelligent hydraulic system ensures precise 6m lifting with auto-lock for safe operation. Safety features include four-leg stabilization, overload protection, and emergency power-off. Maintenance requires clean hydraulic oil (quarterly replacement). For safe use, keep the platform level and attach a safety rope.

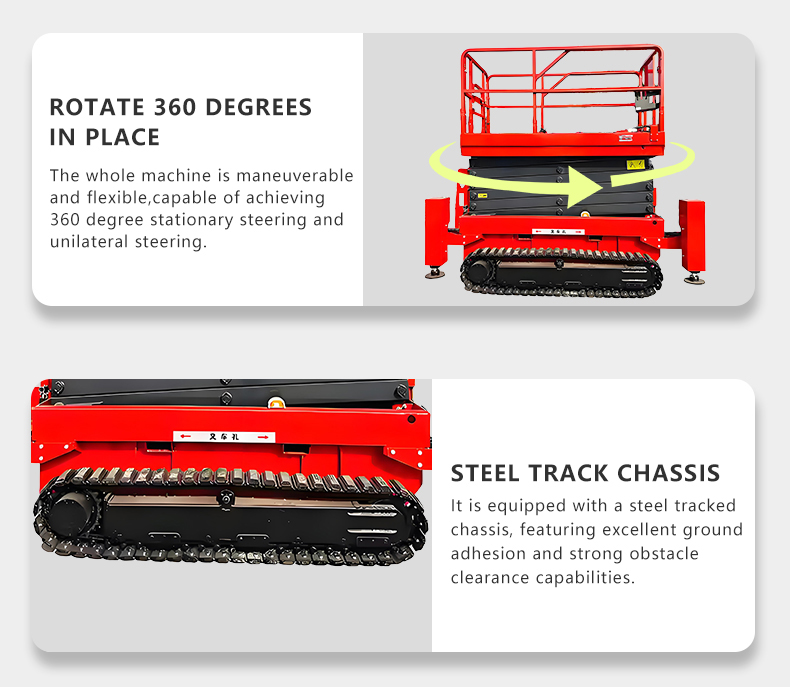

With a crawler chassis design, it can flexibly adapt to complex terrains such as construction sites and factories. The 6-meter working height is suitable for scenarios such as equipment installation, shelf maintenance, and steel structure inspection. The hydraulic system achieves precise positioning, and the leg structure ensures operational safety.

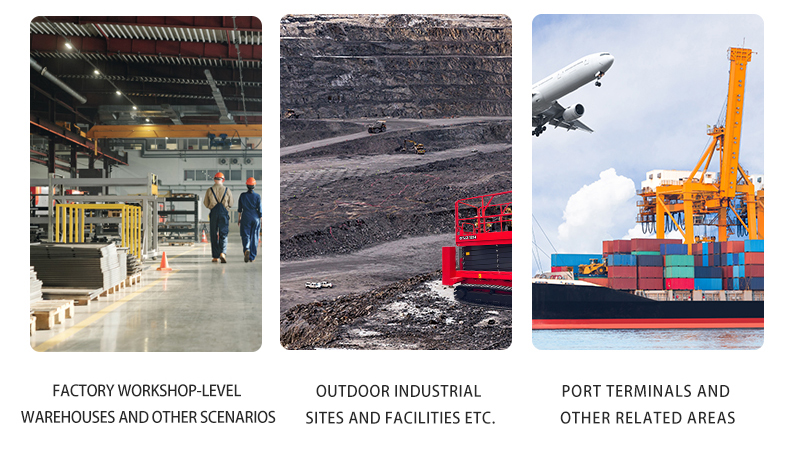

It is widely applied in the fields of construction, logistics and municipal affairs, meeting the needs of platform maintenance, airport equipment repair, etc. At the same time, it is also suitable for power emergency repair and commercial space cleaning operations. It is an efficient and safe solution for high-altitude work.
| Model | MPGTJZ0608 | MPGTJZ0810 | MPGTJZ1012 | MPGTJZ1214 | MPGTJZ1416 |
| Size | |||||
| Maximum working height | 8.0m | 10.0m | 12.0 m | 14.0 m | 15.8m |
| Maximum platform height | 6.0m | 8.0m | 10.0m | 12.0m | 13.8m |
| Overall length[1] | 2.78m | 2.78m | 2.78m | 2.78m | 3.18m |
| Overall width[2] | 1.57 m | 1.57m | 1.57 m | 1.57 m | 1.60 m |
| Overall height(unfolded fence)[4] | 2.35m | 2.47 m | 2.64 m | 2.74 m | 2.74m |
| Overall height (folded fence)[3] | 1.8m | 1.9m | 2.1 m | 2.2m | 2.2m |
| Work platform dimensions(length × width) | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.63*1.13m |
| Platform extension size | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Wheelbase | / | / | / | / | / |
| Ground clearance | / | / | / | / | / |
| Performance | |||||
| Rated load | 450 kg | 450kg | 320 kg | 320 kg | 227 kg |
| Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 110 kg |
| Machine travel speed(retracted state) | 1.8 km/h | 1.8km/h | 1.8km/h | 1.8 km/h | 1.8km/h |
| Machine travel speed (lifting state) | 0.0 km/h | 0.0 km/h | 0.0 km/h | 0.0 km/h | 0.0 km/h |
| Rise/Fall time | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Maximum gradeability | 25% | 25% | 25% | 25% | 25% |
| Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° |
| Maximum allowable working angle (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
| Drive | Electric drive | Electric drive | Electric drive | Electric drive | Electric drive |
| Tire | Steel track | Steel track | Steel track | Steel track | Steel track |
| Power | |||||
| Power source | 8*6V/220AH | 8*6V/220AH | 8*6V/220AH | 8*6V/220AH | 8*6V/240AH |
| Lifting motor | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW |
| Waking motor | 48V/4KW | 48V/4KW | 48V/4KW | 48V/4KW | 48V/4KW |
| Charger | 48V/30A | 48V/30A | 48V/30A | 48V/30A | 48V/30A |
| Weight | |||||
| Overall weight | 2770 kg | 2970 kg | 3270 kg | 3680 kg | 3990 kg |
