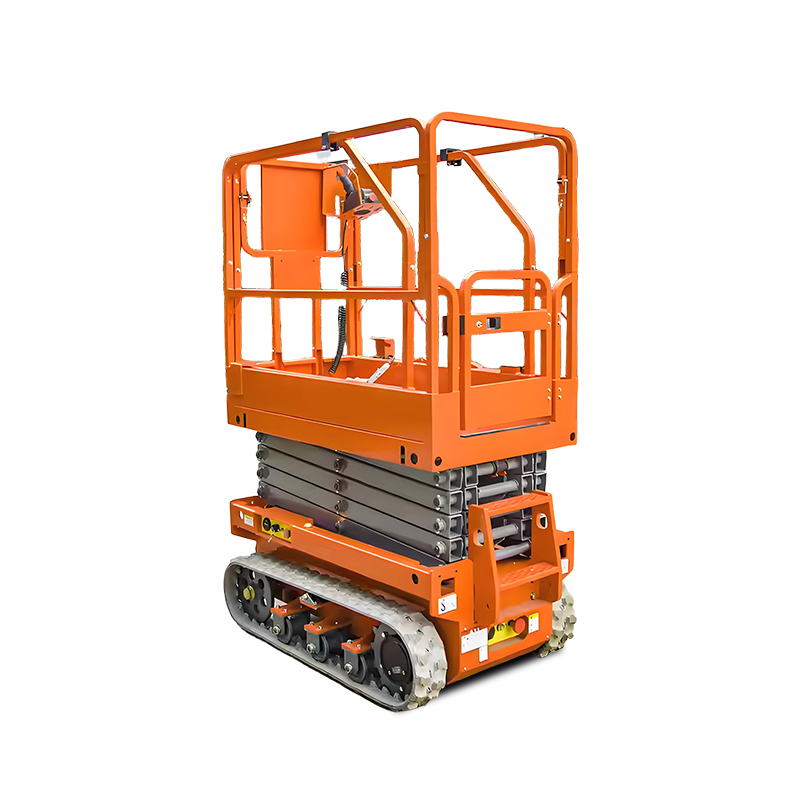

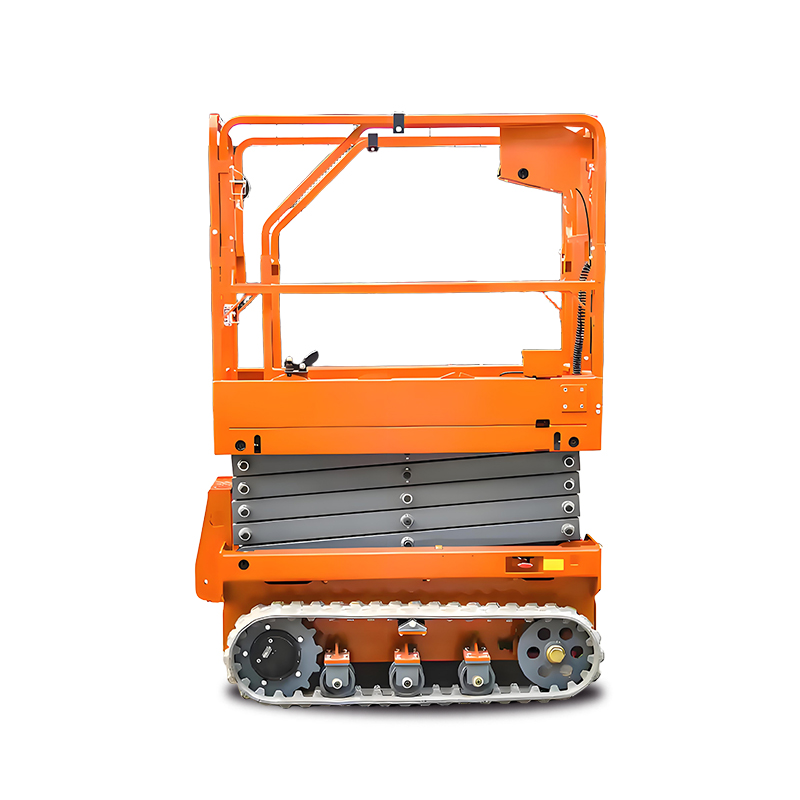

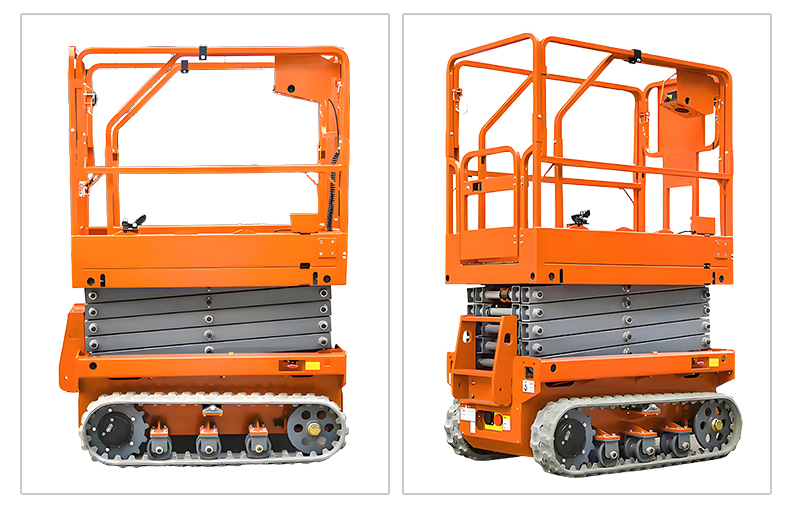

This 8 meters (26 foot)Tracked Scissor Lift features a high-strength manganese steel scissor structure and a fully self-propelled crawler chassis, making it suitable for complex terrains. With a working height of 10 meters and a load capacity of 450 kg, it is equipped with hydraulic anti-fall, overload protection, and emergency manual descent valves, ensuring safety and reliability. The anti-slip insulated platform and adjustable guardrails are both practical and safe. This 8 meters (26 foot)Tracked Scissor Lift supports multiple power sources such as battery, diesel and external power supply, with long-lasting endurance. It is suitable for scenarios such as municipal maintenance and power repair, being highly efficient and flexible, and improving engineering efficiency.
This 8 meters (26 foot)Tracked Scissor Lift is specially designed for high-altitude operations in complex terrains. The crawler chassis is suitable for uneven ground such as construction sites and warehouses. It integrates flexible movement and stable support, and is suitable for vertical operation needs such as factory equipment installation, venue steel structure maintenance, and municipal street lamp inspection. The scissor lift structure ensures the horizontal accuracy of the working platform. The hydraulic system supports independent lifting and adjustment. This 8 meters (26 foot)Tracked Scissor Lift is particularly suitable for high-altitude material transportation and personnel maintenance operations in narrow spaces, and is safe and efficient.
Model | GTJZ0608 | GTJZ0810 | GTJZ1012 | GTJZ1214 | GTJZ1416 |
Size | |||||
Maximum working height | 8.0m | 10.0m | 12.0 m | 14.0 m | 15.8m |
Maximum platform height | 6.0m | 8.0m | 10.0m | 12.0m | 13.8m |

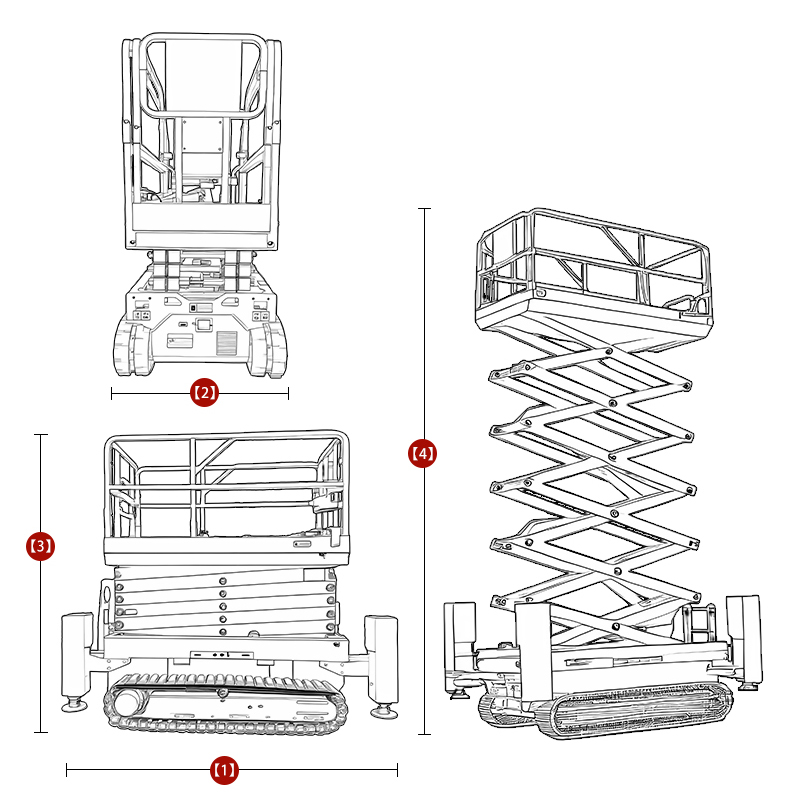

Overall length[1] | 2.78m | 2.78m | 2.78m | 2.78m | 3.18m |
Overall width[2] | 1.57 m | 1.57m | 1.57 m | 1.57 m | 1.60 m |
Overall height(unfolded fence)[4] | 2.35m | 2.47 m | 2.64 m | 2.74 m | 2.74m |
Overall height (folded fence)[3] | 1.8m | 1.9m | 2.1 m | 2.2m | 2.2m |
Work platform dimensions(length × width) | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.63*1.13m |
Platform extension size | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
Wheelbase | / | / | / | / | / |
Ground clearance | / | / | / | / | / |
Performance | |||||
Rated load | 450 kg | 450kg | 320 kg | 320 kg | 227 kg |
Extended platform rated load | 113 kg | 113 kg | 113 kg | 113 kg | 110 kg |
Machine travel speed(retracted state) | 1.8 km/h | 1.8km/h | 1.8km/h | 1.8 km/h | 1.8km/h |
Machine travel speed (lifting state) | 0.0 km/h | 0.0 km/h | 0.0 km/h | 0.0 km/h | 0.0 km/h |
Rise/Fall time | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
Maximum | 25% | 25% | 25% | 25% | 25% |
Maximum allowable angle for work (front and back) | 3° | 3° | 3° | 3° | 3° |
Maximum allowable working angle (lateral) | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
Drive | Electric drive | Electric drive | Electric drive | Electric drive | Electric drive |
Tire | Steel track | Steel track | Steel track | Steel track | Steel track |
Power | |||||
Power source | 8*6V/220AH | 8*6V/220AH | 8*6V/220AH | 8*6V/220AH | 8*6V/240AH |
Lifing motor | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW |
Waking motor | 48V/4KW | 48V/4KW | 48V/4KW | 48V/4KW | 48V/4KW |
Charger | 48V/30A | 48V/30A | 48V/30A | 48V/30A | 48V/30A |
Weight | |||||
Overall weight | 2770 kg | 2970 kg | 3270 kg | 3680 kg | 3990 kg |
