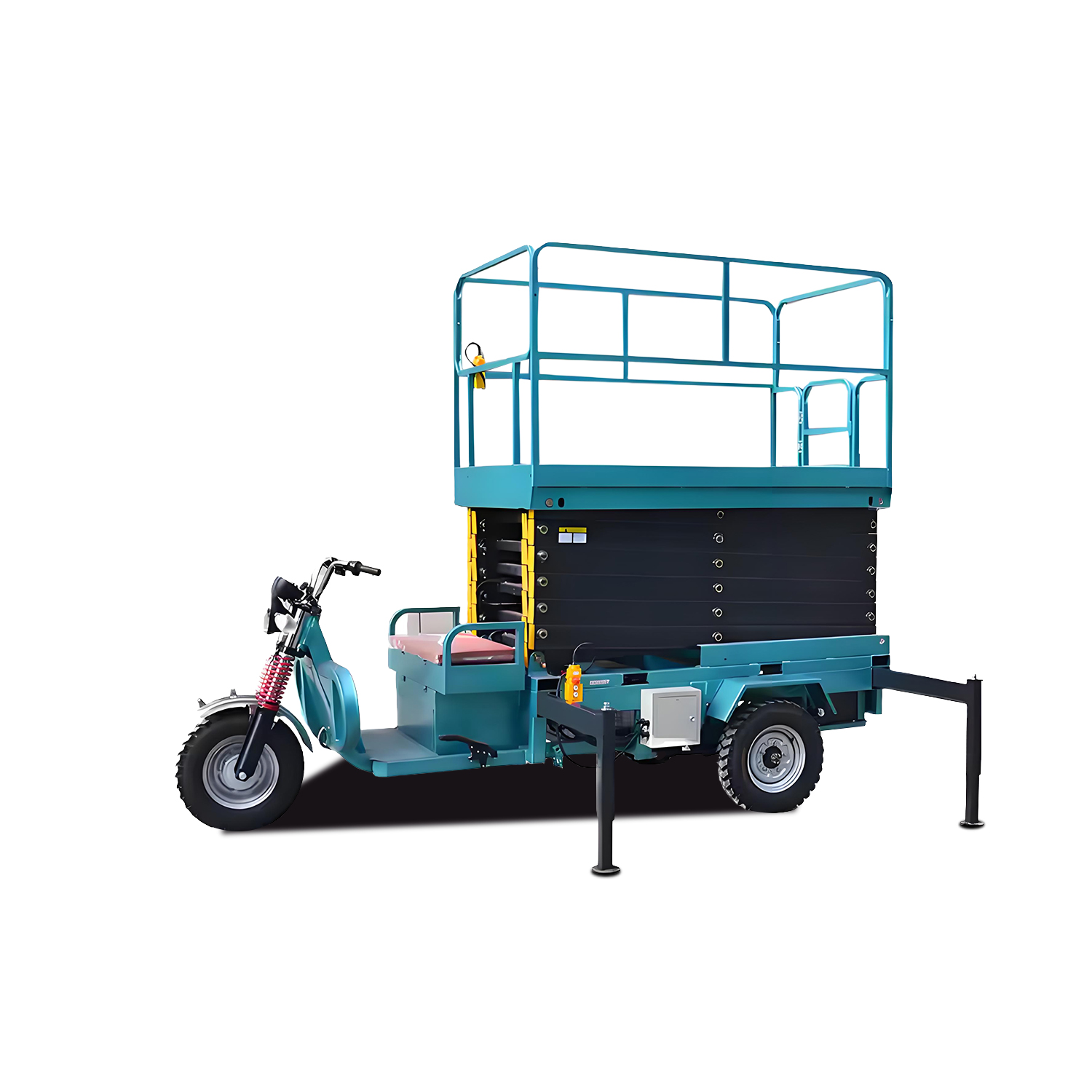

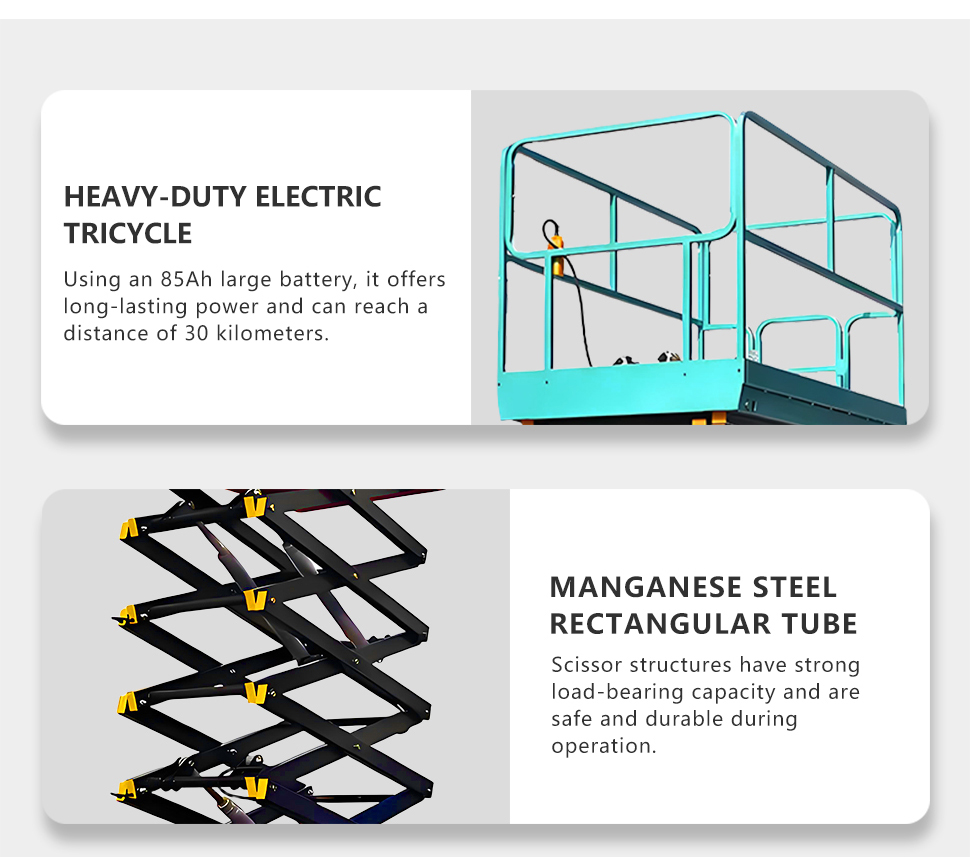

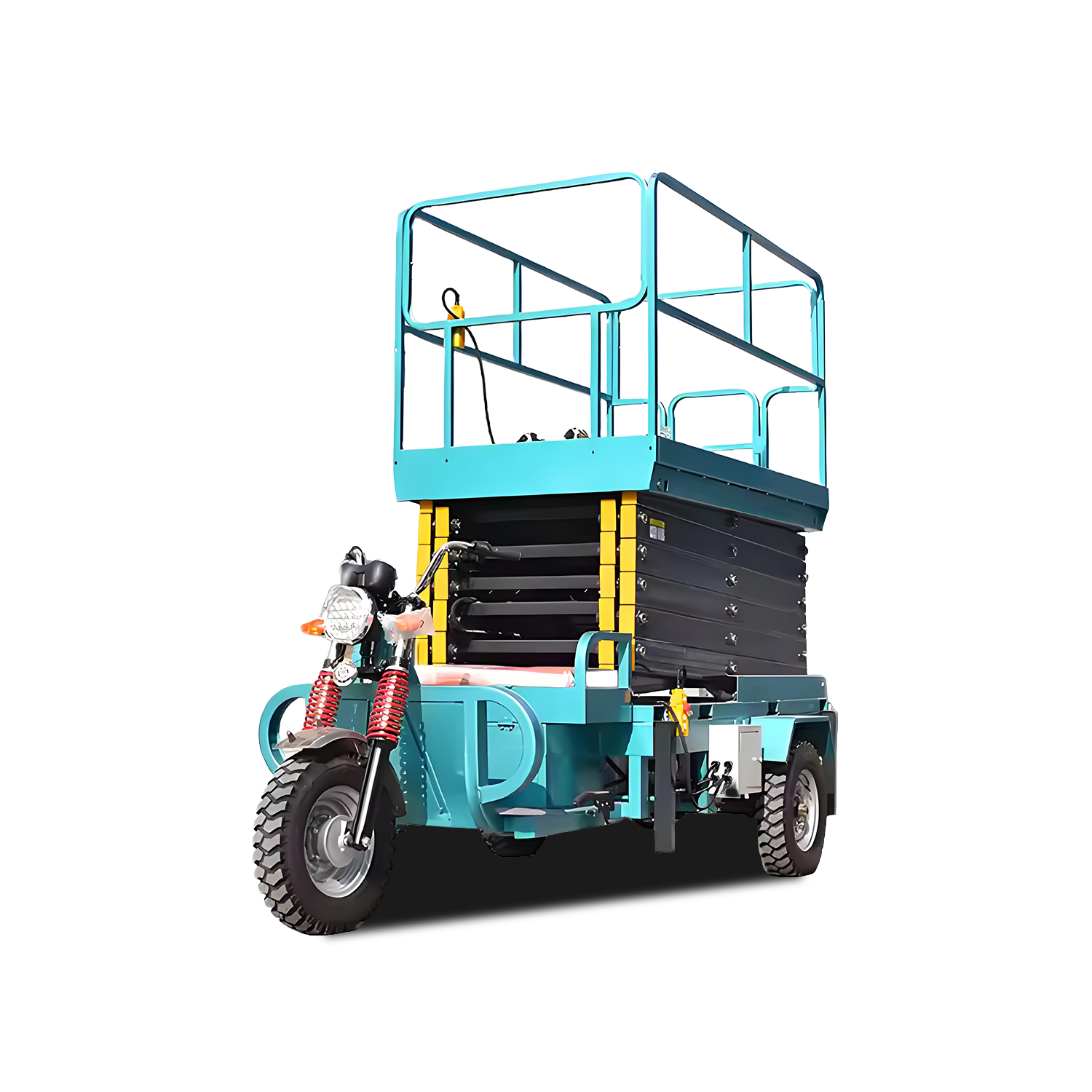

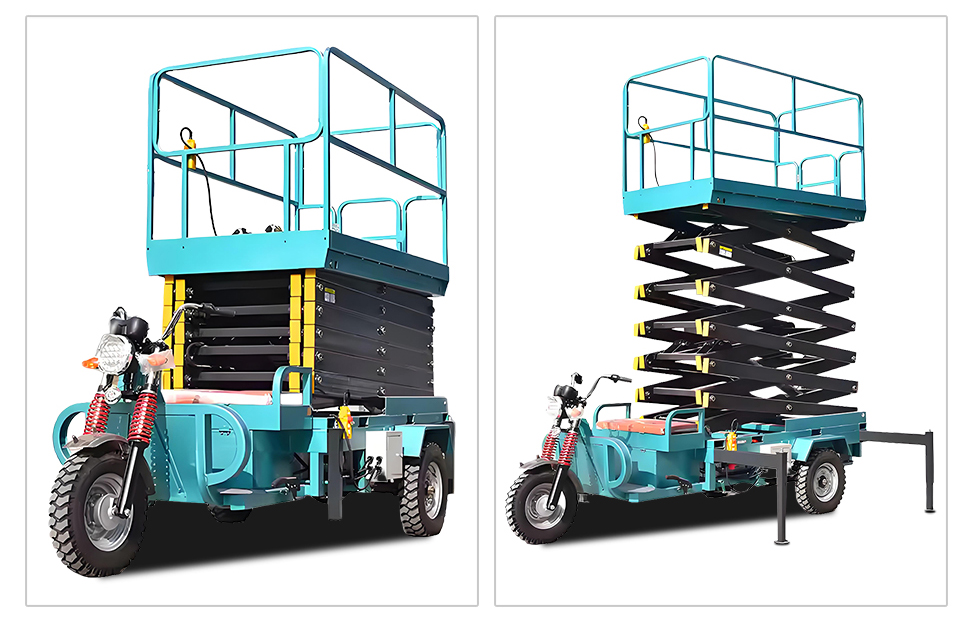

A tricycle scissor lift primarily consists of a tricycle chassis, a lifting mechanism (a scissor-type lift), a battery-powered power system, a control system, and safety devices. Common lift heights include 4, 6, 8, 10, and 12 meters. Battery-powered tricyclev scissor lifts can reach speeds of approximately 30 kilometers per hour and have a range of 80-200 kilometers. The scissor-type structure of tricycle-mounted lifts is often constructed of high-quality rectangular manganese steel tubing, offering high overall strength, a large load capacity, and excellent lifting stability.
The tricycle scissor lift, with its tricycle chassis, can maneuver flexibly through complex terrains and adapt to diverse operating environments. It can be used for a variety of aerial work scenarios, including exterior wall painting and maintenance, door and window installation, streetlight inspection and repair, building maintenance, oilfield exploration, and mining, improving work efficiency.
| Type | Platform size(mm) | Lifed height(mm) | Load(kg) | Weight(kg) |
| MY-0.5-4 | 2010*830 | 4 | 500 | 1010 |
| MY-0.5-6 | 2010*830 | 6 | 500 | 1110 |
| MY-0.5-6.8 | 2010*830 | 6.8 | 500 | 1110 |
| MY-0.5-8 | 2010*830 | 8 | 500 | 1210 |
| MPSC-0.5-9 | 2010*830 | 9 | 500 | 1290 |
| MPSC-0.5-10 | 2010*1130 | 10 | 500 | 1600 |
| MY-0.3-11 | 2010*1130 | 11 | 300 | 1740 |
| MY-0.3-11.5 | 2010*1130 | 11.5 | 500 | 1740 |
| MY-0.5-12 | 2500*1210 | 12 | 500 | 2430 |
