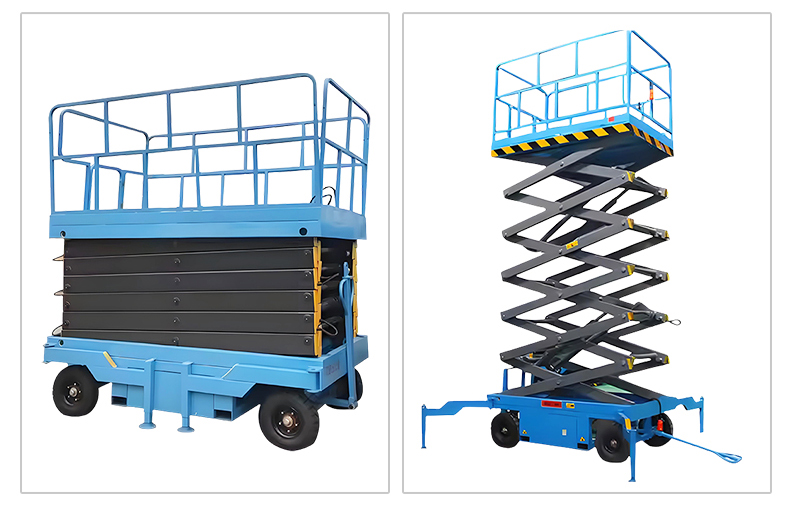

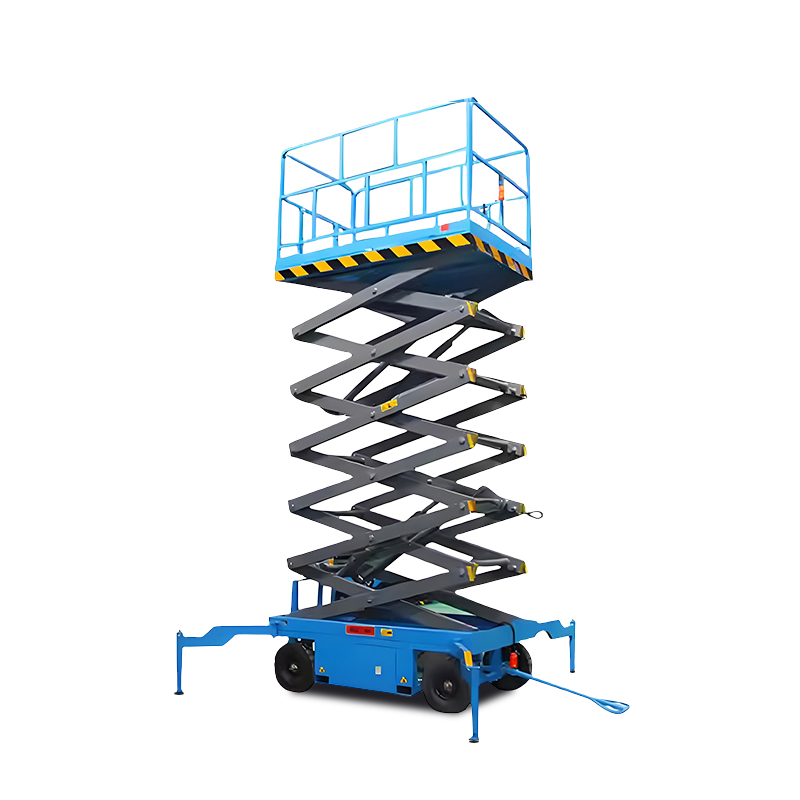

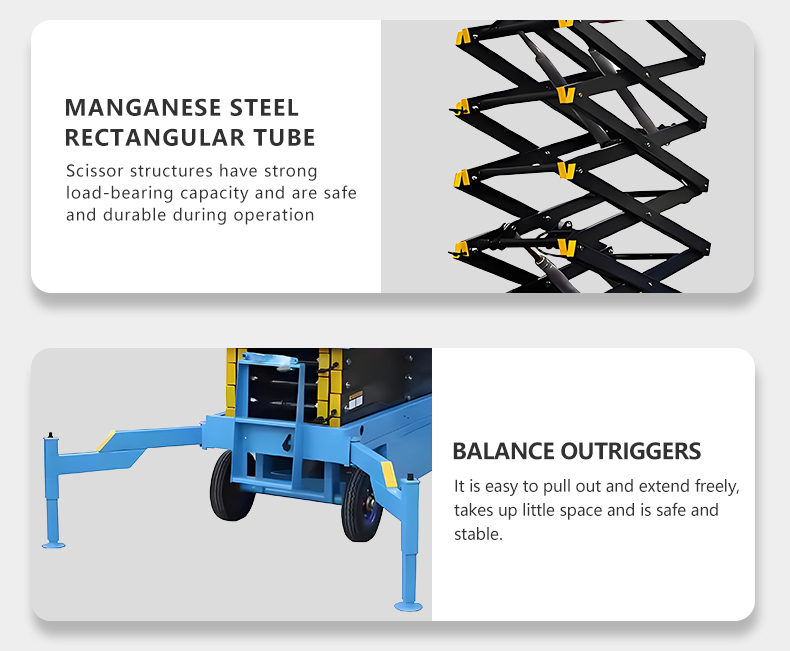

The 6-meter mobile scissor aerial work platform adopts a manganese steel scissor structure, equipped with a four-wheel mobile chassis and an anti-slip insulating platform, featuring both stable load capacity and flexible transfer advantages. It supports dual power drive of 220V/380V and diesel, and is equipped with a manual emergency descent device, allowing for safe operation even in the event of a power outage.
With a maximum load capacity of 500kg and a lifting height of 6 meters, it is suitable for high-altitude scenarios such as construction sites, warehouses, and municipal facilities, meeting the needs of equipment maintenance and power maintenance. It is a professional-level device that integrates safety protection and efficient operation.
The 6-meter mobile scissor aerial work platform is specially designed for municipal street lamp maintenance, traffic monitoring and maintenance, power emergency repair and workshop equipment installation. It is equipped with an anti-slip insulating platform and a hydraulic safety system, allowing for flexible movement in narrow spaces and supporting two-person collaborative operation.
The lifting height is adapted to a 6-meter scenario, equipped with anti-fall protection and emergency descent functions in case of power failure, catering to the needs of property maintenance and factory inspection. With a stable structure and high load-bearing capacity, it ensures operation safety and significantly improves the efficiency of high-altitude operations.
| Type | Platform size(mm) | Lift height(mm) | Load(kg) | Weight(kg) | Dimension(mm) |
| MY0.5-4 | 2010*830 | 4 | 500 | 670 | 2016*1000*1120 |
| MY0.5-6 | 2010*830 | 6 | 500 | 730 | 2016*1000*1170 |
| MY0.5-6.8 | 2010*830 | 6.8 | 500 | 780 | 2016*1000*1170 |
| MY0.5-8 | 2010*830 | 8 | 500 | 860 | 2016*1000*1260 |
| MY0.5-9 | 2010*830 | 9 | 500 | 1080 | 2016*1000*1480 |
| MY0.5-10 | 2010*1130 | 10 | 500 | 1300 | 2016*1290*1540 |
| MY0.3-11 | 2010*1130 | 11 | 300 | 1400 | 2016*1290*1660 |
| MY0.5-12 | 2500*1210 | 12 | 500 | 2050 | 2500*1360*1780 |
| MY0.5-14 | 2845*1420 | 14 | 500 | 2540 | 2845*1620*1895 |
| MY0.3-16 | 2845*1420 | 16 | 300 | 2700 | 2845*1620*2055 |
| MY0.3-18 | 3700*1620 | 18 | 300 | 3900 | 3700*1628*2120 |
| MY1.0-4 | 2010*1130 | 4 | 1000 | 1000 | 2016*1290*1150 |
| MY1.0-6 | 2010*1130 | 6 | 1000 | 1130 | 2016*1290*1310 |
| MY1.0-8 | 2010*1130 | 8 | 1000 | 1380 | 2016*1290*1420 |
| MY1.0-10 | 2010*1130 | 10 | 1000 | 1580 | 2016*1290*1620 |
| MY1.0-12 | 2500*1210 | 12 | 1000 | 2500 | 2465*1360*1780 |
| MY1.0-14 | 2845*1420 | 14 | 1000 | 2800 | 2845*1620*1895 |
