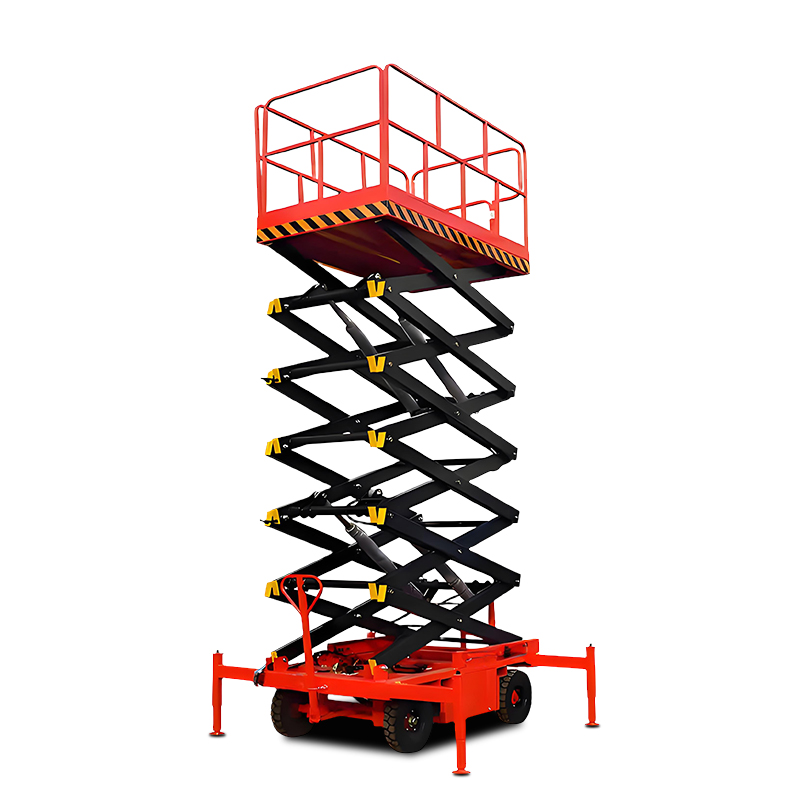

The 10-meter mobile scissor aerial work platform adopts a scissor mechanical structure, with a lifting height of up to 10 meters and a load capacity of 500 kilograms. The four-wheel drive chassis is suitable for operation on rough ground. Equipped with a self-propelled system, it can freely turn and move without the need for an external power supply. It features dual control operation with a flashlight and supports emergency lifting in case of power failure.
The hydraulic transmission is smooth and reliable. The anti-slip insulating work surface and emergency descent device ensure the safety of operations. It is suitable for scenarios such as factory maintenance,equipment installation, and warehouse loading and unloading, meeting the needs of efficient handling and high-altitude operations, and significantly improving construction efficiency.
The 10-meter mobile scissor aerial work platform is specially designed for indoor and outdoor high-altitude operations and is suitable for scenarios such as factory maintenance, warehouse loading and unloading, and maintenance of shopping malls and exhibition halls. It is powered by 220V/380V, diesel engine or battery, and is equipped with an anti-slip insulating platform and detachable guardrails, allowing for flexible passage in narrow Spaces.
The double support leg structure ensures the stability of operation. The electro-hydraulic proportional control enables precise lifting. The overload protection system and the emergency descent device form a dual safety barrier. The telescopic tabletop expands the working range, and the rainproof electrical box is suitable for outdoor environments. It is an efficient and safe solution for high-altitude operations.
| Type | Platform size(mm) | Lift height(mm) | Load(kg) | Weight(kg) | Dimension(mm) |
| MY0.5-4 | 2010*830 | 4 | 500 | 670 | 2016*1000*1120 |
| MY0.5-6 | 2010*830 | 6 | 500 | 730 | 2016*1000*1170 |
| MY0.5-6.8 | 2010*830 | 6.8 | 500 | 780 | 2016*1000*1170 |
| MY0.5-8 | 2010*830 | 8 | 500 | 860 | 2016*1000*1260 |
| MY0.5-9 | 2010*830 | 9 | 500 | 1080 | 2016*1000*1480 |
| MY0.5-10 | 2010*1130 | 10 | 500 | 1300 | 2016*1290*1540 |
| MY0.3-11 | 2010*1130 | 11 | 300 | 1400 | 2016*1290*1660 |
| MY0.5-12 | 2500*1210 | 12 | 500 | 2050 | 2500*1360*1780 |
| MY0.5-14 | 2845*1420 | 14 | 500 | 2540 | 2845*1620*1895 |
| MY0.3-16 | 2845*1420 | 16 | 300 | 2700 | 2845*1620*2055 |
| MY0.3-18 | 3700*1620 | 18 | 300 | 3900 | 3700*1628*2120 |
| MY1.0-4 | 2010*1130 | 4 | 1000 | 1000 | 2016*1290*1150 |
| MY1.0-6 | 2010*1130 | 6 | 1000 | 1130 | 2016*1290*1310 |
| MY1.0-8 | 2010*1130 | 8 | 1000 | 1380 | 2016*1290*1420 |
| MY1.0-10 | 2010*1130 | 10 | 1000 | 1580 | 2016*1290*1620 |
| MY1.0-12 | 2500*1210 | 12 | 1000 | 2500 | 2465*1360*1780 |
| MY1.0-14 | 2845*1420 | 14 | 1000 | 2800 | 2845*1620*1895 |
