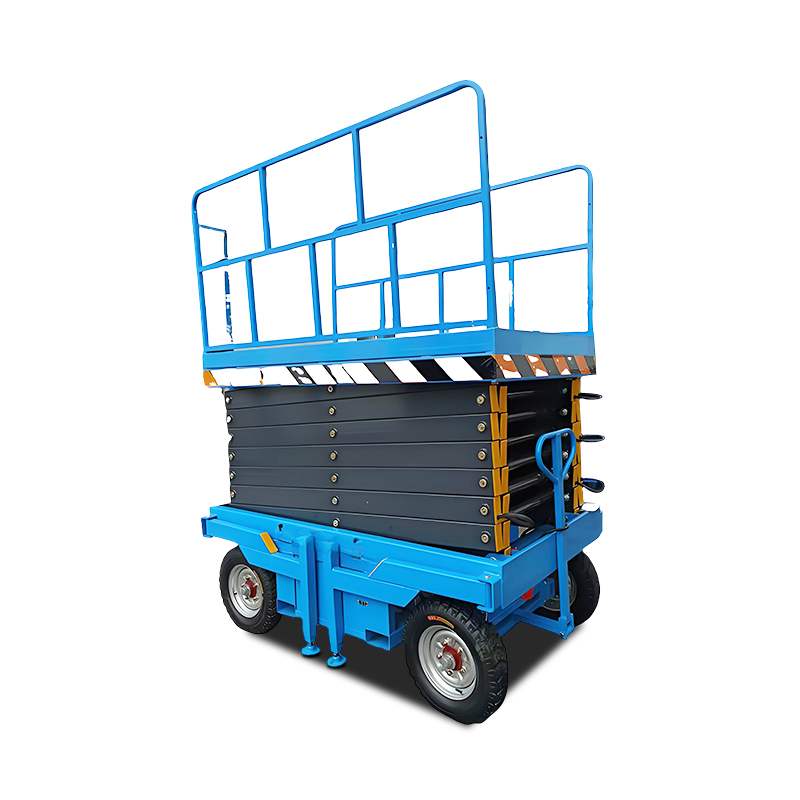

The 12-meter mobile scissor aerial work platform adopts hydraulic drive and scissor support structure, and is equipped with wear-resistant pneumatic tires to achieve flexible steering. The equipment is equipped with a dual AC and DC power supply system and a diesel drive option. It can complete operations at heights of 8 to 14 meters without an external power supply.
The standard load capacity of 500 kilograms and the redundant design of 700 kilograms ensure operation safety. The body is treated with electrostatic spraying , which combines anti-corrosion and industrial aesthetics. It can be widely used in equipment maintenance, power installation and other scenarios. Its folding platform and semi-automatic control system significantly improve the operation efficiency in complex environments.
The 12-meter mobile scissor aerial work platform, with an intelligent lifting span of 8 to 14 meters, can meet the requirements of high-altitude installation, equipment maintenance and cleaning operations in scenarios such as factory workshops, construction sites and exhibition venues. Its four-wheel mobile chassis, equipped with a battery-powered drive system, enables flexible steering on complex terrains such as airport platforms and logistics parks, maintaining smooth lifting and lowering even when carrying a load of 300 to 500 kilograms.
The equipment adopts a laser-welded structural steel body and an aerospace-grade hydraulic system, and is equipped with a level alarm instrument and an emergency braking device. It is particularly suitable for operation scenarios with strict safety requirements such as the maintenance of station ceilings and the adjustment of stadium lighting.
| Type | Platform size(mm) | Lift height(mm) | Load(kg) | Weight(kg) | Dimension(mm) |
| MY0.5-4 | 2010*830 | 4 | 500 | 670 | 2016*1000*1120 |
| MY0.5-6 | 2010*830 | 6 | 500 | 730 | 2016*1000*1170 |
| MY0.5-6.8 | 2010*830 | 6.8 | 500 | 780 | 2016*1000*1170 |
| MY0.5-8 | 2010*830 | 8 | 500 | 860 | 2016*1000*1260 |
| MY0.5-9 | 2010*830 | 9 | 500 | 1080 | 2016*1000*1480 |
| MY0.5-10 | 2010*1130 | 10 | 500 | 1300 | 2016*1290*1540 |
| MY0.3-11 | 2010*1130 | 11 | 300 | 1400 | 2016*1290*1660 |
| MY0.5-12 | 2500*1210 | 12 | 500 | 2050 | 2500*1360*1780 |
| MY0.5-14 | 2845*1420 | 14 | 500 | 2540 | 2845*1620*1895 |
| MY0.3-16 | 2845*1420 | 16 | 300 | 2700 | 2845*1620*2055 |
| MY0.3-18 | 3700*1620 | 18 | 300 | 3900 | 3700*1628*2120 |
| MY1.0-4 | 2010*1130 | 4 | 1000 | 1000 | 2016*1290*1150 |
| MY1.0-6 | 2010*1130 | 6 | 1000 | 1130 | 2016*1290*1310 |
| MY1.0-8 | 2010*1130 | 8 | 1000 | 1380 | 2016*1290*1420 |
| MY1.0-10 | 2010*1130 | 10 | 1000 | 1580 | 2016*1290*1620 |
| MY1.0-12 | 2500*1210 | 12 | 1000 | 2500 | 2465*1360*1780 |
| MY1.0-14 | 2845*1420 | 14 | 1000 | 2800 | 2845*1620*1895 |
