Contact form6-Meter Self-Propelled Scissor Lift
As an efficient and flexible aerial work platform, the 12-meter self-propelled scissor lift is widely used across industries including construction, industrial maintenance, transportation, and power utilities. Below is a detailed product introduction:
Product Overview

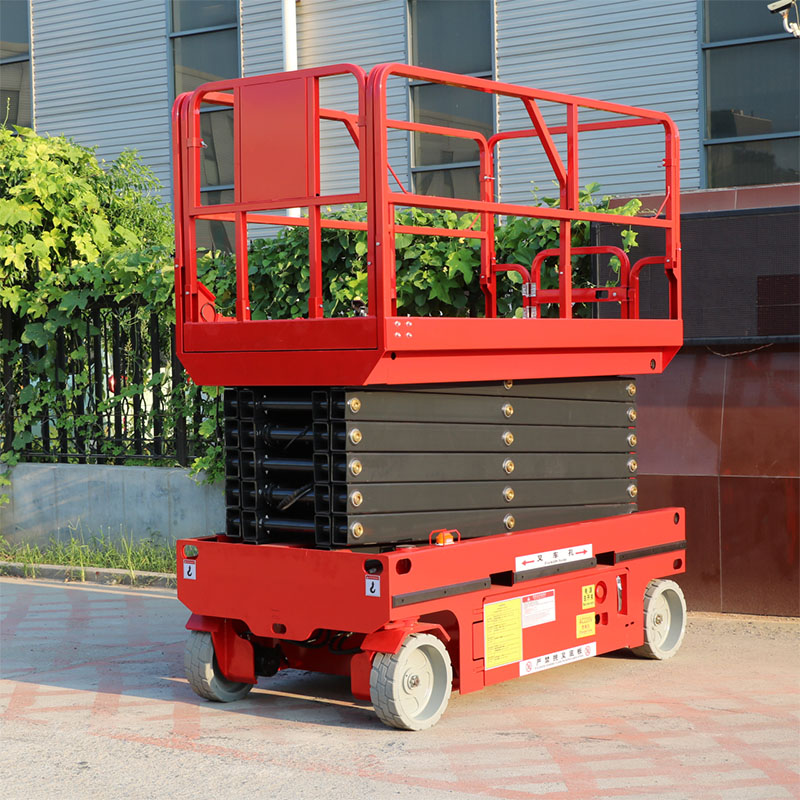

This 6-meter-long self-propelled scissor lift, as the name suggests, is a mobile mechanical device with a working height of up to 7.8 meters. It combines lifting technology with self-movement capabilities, and can operate without the need for external traction equipment. It can move flexibly at the work site, significantly improving work efficiency and coverage.
SelfProduct main features:
- The height can be adjusted up to 7.8 meters, meeting the needs of different heights.
- Self-mobility: The self-driven design does not require an external power source, ensuring free movement.
- User-friendly operation: The advanced control system makes single-person operation very simple.
- Enhanced stability: The scissor structure can prevent shaking and tilting during the lifting process.
- High carrying capacity: The spacious platform can accommodate multiple workers or a large amount of heavy objects.
- Safety guarantee: Comprehensive protective measures include overload protection, fall protection, tilt sensors, and emergency systems.
This product is powered by batteries and is environmentally friendly.It has the advantages of high stability,flexible operation,and safety and reliability.It is widely used in urban complexes,small electronic factories, tunnels, exhibition halls, and other construction,maintenance,and building property management environments.
Product application aspects:
- Construction content: Exterior wall construction, window installation, material transportation between floors.
- Industrial aspects: Production line maintenance, warehouse stacking, lighting equipment replacement.
- Transportation aspects: Road/bridge maintenance, tunnel construction.
- Power facility services: Power line maintenance, tower inspection, substation equipment installation.
GTJZ-0608 Configuration
| Model (Self-actuating Hydraulic Drive) | GTJZ-0608 |
| Maximum working height | 7.8m |
| Maximum platform height | 5.8m |
| Safe working load | 450kg |
| Extended platform safety working load | 113kg |
| Work platform dimensions (length × width) | 2270mm×1130mm |
| Overall dimensions of the machine (length × width × height, without folding the guardrail) | 2390mm×1160mm×2210mm |
| Overall machine dimensions (length × width × height, with guardrail folded) | 2390mm×1160mm×1700mm |
| Work surface extension dimension | 900mm |
| Minimum ground clearance | 106mm/29mm |
| Wheel base | 1865mm |
| Turning radius (inner wheel/outer wheel) | 2.3/2.5m |
| Lifting/Drive Motor | continuous current dynamo：24V/4.5KW
alternating current machine：24V/3.4KW |
| Lift-up and descent speed | 3-5m/min |
| Machine traveling speed (retracted state) | 3.5km/h |
| Machine traveling speed (lifting state) | 0.8km/h |
| Accumulator | 4×6V/200Ah |
| Charger | 24V/30A |
| Maximum gradeability | 25% |
| Maximum allowable working angle | 1.5°/3° |
| Tyre | Φ381×127mm |
| Total weight | 2100kg |
Main Configuration List
| Automatic Pit Protection System | Autobrake system | Buzzer | Extension platform |
| Automatic Pit Protection System | Emergency descent system | Trumpet | Charging protection system |
| Platform self-locking door | Emergency stop push button | Work schedule | |
| Full journey walking | Oil pipe explosion-proof system | Safety inspection support pole | |
| Silent tires | Fault diagnosis system | Standard transportation forklift hole | |
| 4×2 drive | Inclined protection system | Folding fence |
| Safety fence | Use 35mm x 35mm square tubes |
| Mesa | Install anti-slip pattern plates 3mm thick |
| Fulcrum bar | Pipe: 125mm * 75mm * 5mm (manganese steel) |
| Underframe | Steel plate welding |
| Link pin shaft | Oil-free bearings (Germany) |
| Hydraulic cylinder | Qiqi Hydraulic |
| Power storage battery | Tianneng Group |
| Hydraulic oil | N46# Wear-resistant (Summer) N32# Wear-resistant (Winter) |
| Electronic control system | HBL Hanbole Searis |
| Fluid power system | Letter No. 375 |
| Electrical machinery | Wanxiang |
| Valve bank | Qiangtian |
| Charger | Samet SMCZ1/ TianNeng New Energy Specialized Product |
| Tyre | Juneng Zhefa |
| Surface treatment | Electrophoretic powder coating treatment |
| Electronic control. Battery. Hydraulic drive. | The import price for the accessories will be negotiated separately. |
