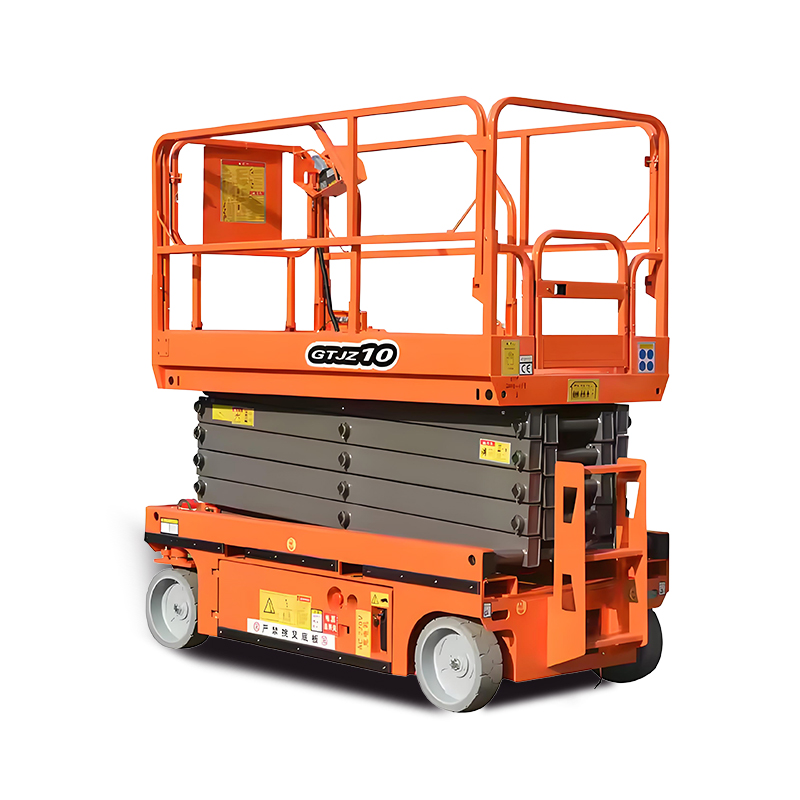

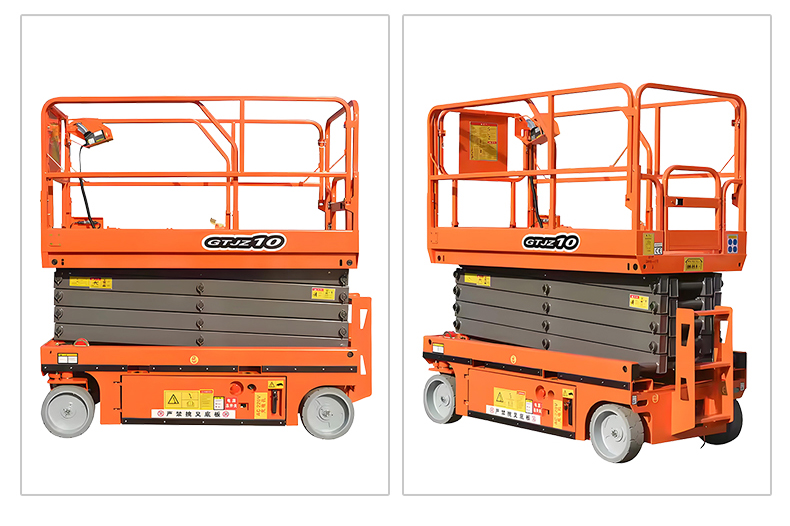

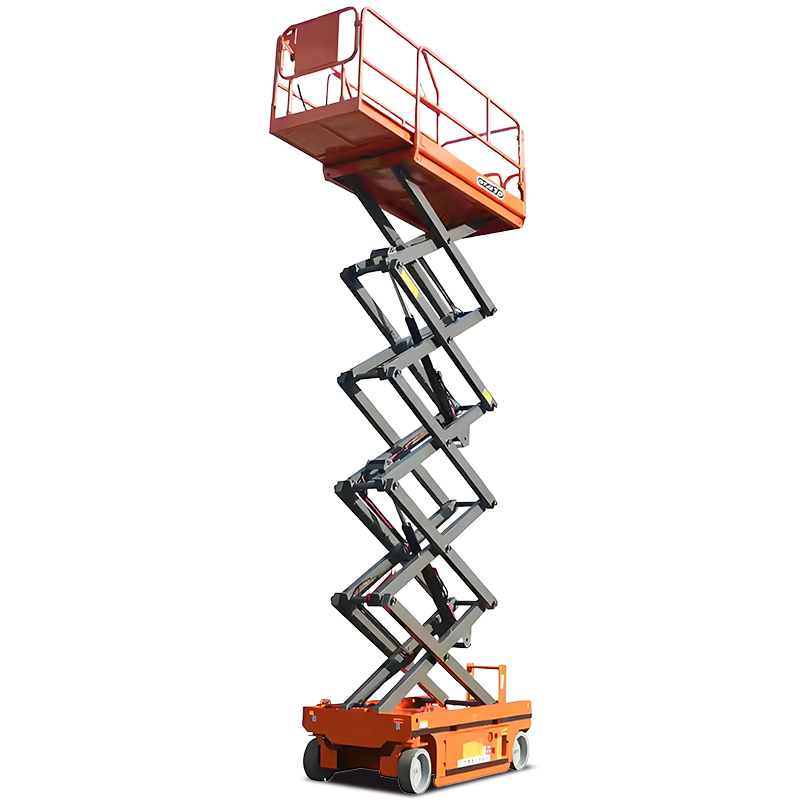

This 10-meter self-propelled hydraulic scissor-type lifting platform is, as the name suggests, a mechanical device
with mobile functionality. Its working height can reach 11.8 meters. As a revolutionary workpiece in the modern
high-altitude operation field, the 10-meter self-propelled hydraulic scissor-type lifting platform integrates mechanical
precision and intelligent control, pioneering a new paradigm of efficient and safe operation. This equipment adopts a
modular structure design, with the scissor-type main body as the core, combined with a DC electric drive system and
an intelligent hydraulic station. It demonstrates outstanding engineering value in scenarios such as building maintenance,
logistics loading and unloading, and industrial installation.
The 10-meter self-propelled hydraulic scissor-type lifting platform is a multi-functional high-altitude operation
equipment specially designed for various indoor and outdoor high-altitude operation scenarios. Its flexible and
stable characteristics make it an ideal choice in the fields of construction, industry, and municipal services. In
construction projects, it can be used for exterior wall painting, curtain wall installation, and steel structure welding;
in factory buildings and workshops, it can easily complete equipment maintenance, pipeline maintenance, and lighting
replacement tasks; in storage and logistics areas, it can efficiently perform high-altitude operations such as shelf
retrieval and warehouse top maintenance. For public places like shopping malls and exhibitions, the platform’s low noise
and zero emission characteristics are particularly suitable for indoor advertising installation, lamp repair, etc.; in municipal
engineering, it is widely used in street lamp maintenance, garden pruning, and traffic facility maintenance. The equipment
is designed for self-propulsion, equipped with an electric drive system, and is mobile and flexible; the hydraulic scissor
structure ensures smooth lifting, and the 10-meter operation height meets the needs of most medium-high-altitude operations.
The compact body design can easily pass through standard door frames and adapt to narrow space operations. Whether on a
flat indoor floor or a slightly uneven outdoor site, this lifting platform can safely and efficiently complete tasks, significantly
improving operation efficiency and reducing human risks, and is a reliable helper for modern high-altitude operations.
GTJZ-0810 Specifications
Parameter | Specification |
---|---|
Model (Self-Propelled Hydraulic) | GTJZ-1012 |
Max Working Height | 11.8m |

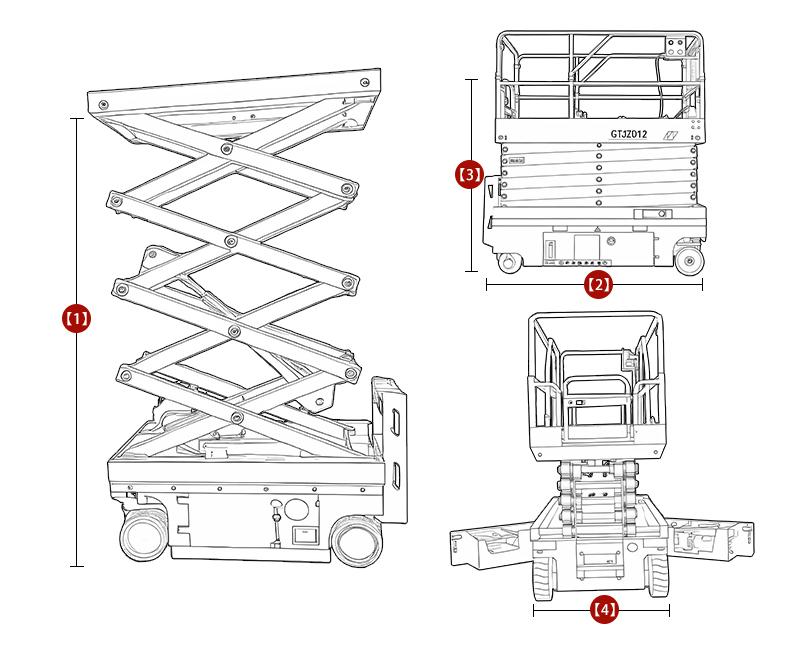

Max Platform Height【1】 | 9.8m |
Safe Working Load (SWL) | 320kg |
SWL (Extended Platform) | 113kg |
Platform Dimensions (L×W)【2】 | 2270mm × 1130mm |
Overall Dimensions (L×W×H, Guardrails Up)【3】 | 2390mm × 1160mm × 2470mm |
Overall Dimensions (L×W×H, Guardrails Folded)【4】 | 2390mm × 1160mm × 1940mm |
Platform Extension | 900mm |
Min Ground Clearance | 106mm / 29mm |
Wheelbase | 1865mm |
Turning Radius (Inner/Outer) | 2.3m / 2.5m |
Lifting/Drive Motor | DC Motor: 24V/4.5KW AC Motor: 24V/3.4KW |
Lifting Speed | 3-5 m/min |
Travel Speed (Stowed) | 3.5 km/h |
Travel Speed (Raised) | 0.8 km/h |
Battery | 4 × 6V/200Ah |
Charger | 24V/30A |
Max Gradeability | 25% |
Max Allowable Operating Slope | 1.5° (longitudinal) / 3° (lateral) |
Tires | Φ381 × 127mm |
Net Weight | 2550kg |
