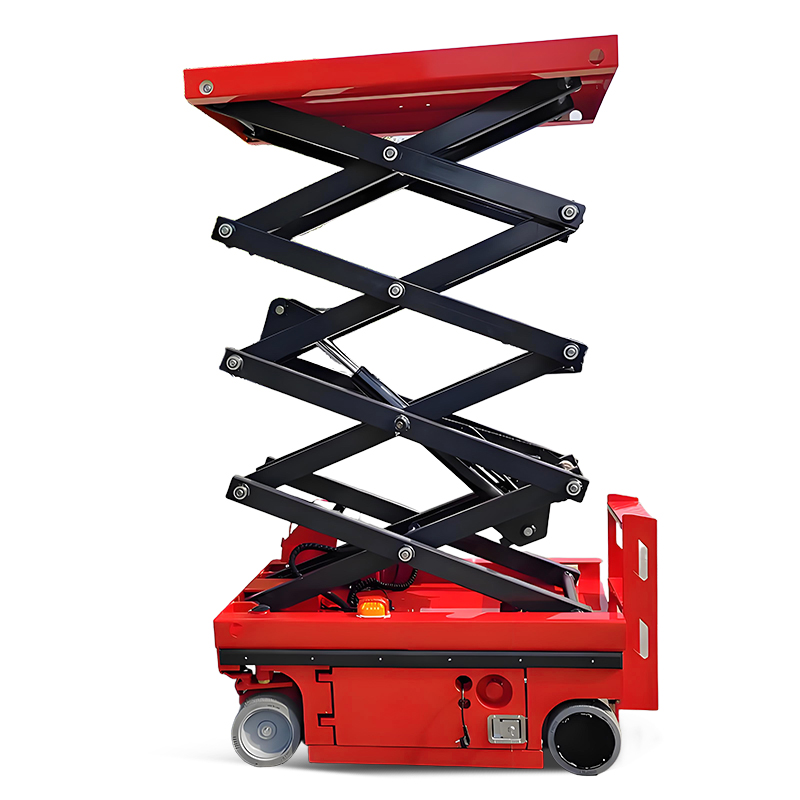

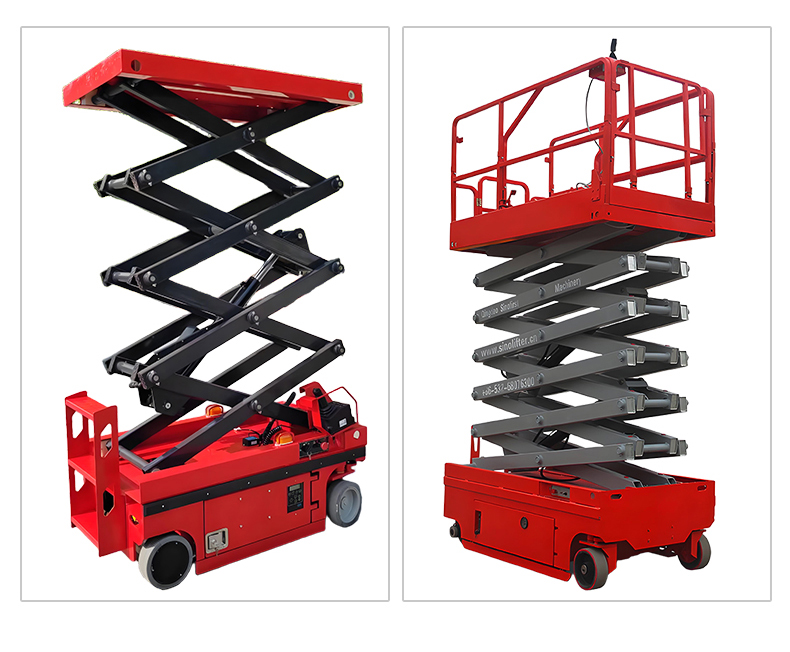

This 6-meter-long self-propelled scissor lift, as the name suggests, is a mechanical device with mobile functionality.
Its working height can reach 7.8 meters. The military-grade structure ensures smooth lifting with millimeter-level
precision, and the dual power system supports 4-hour wireless operation. The 80cm intelligent extension platform
and all-terrain chassis are accompanied by a triple safety protection system. It is an excellent tool for high-altitude
operations in construction, warehousing, and factories, enabling simultaneous improvement of efficiency and safety.

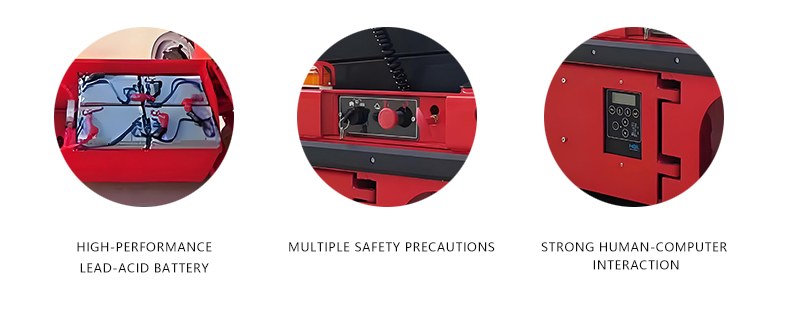

This product is powered by a battery, which is environmentally friendly. It features high stability, flexible
operation, and safety and reliability. It is widely used in various industrial construction and building
management scenarios such as urban complexes, equipment maintenance and property management,
aviation, airports, ports, small electronics factories, power supply, tunnels, exhibition halls, hotels, etc.
GTJZ-0608 Specifications
| Parameter | Specification |
|---|---|
| Model (Self-Propelled Hydraulic) | GTJZ-0608 |
| Max Working Height | 7.8m |
| Max Platform Height【1】 | 5.8m |
| Safe Working Load (SWL) | 450kg |
| SWL (Extended Platform) | 113kg |
| Platform Dimensions (L×W)【2】 | 2270mm × 1130mm |
| Overall Dimensions (L×W×H, Guardrails Up)【3】 | 2390mm × 1160mm × 2210mm |
| Overall Dimensions (L×W×H, Guardrails Folded）【4】 | 2390mm × 1160mm × 1700mm |
| Platform Extension | 900mm |
| Min Ground Clearance | 106mm / 29mm |
| Wheelbase | 1865mm |
| Turning Radius (Inner/Outer) | 2.3m / 2.5m |
| Lifting/Drive Motor | DC Motor: 24V/4.5KW AC Motor: 24V/3.4KW |
| Lifting Speed | 3-5 m/min |
| Travel Speed (Stowed) | 3.5 km/h |
| Travel Speed (Raised) | 0.8 km/h |
| Battery | 4 × 6V/200Ah |
| Charger | 24V/30A |
| Max Gradeability | 25% |
| Max Allowable Operating Slope | 1.5° (longitudinal) / 3° (lateral) |
| Tires | Φ381 × 127mm |
| Net Weight | 2100kg |
