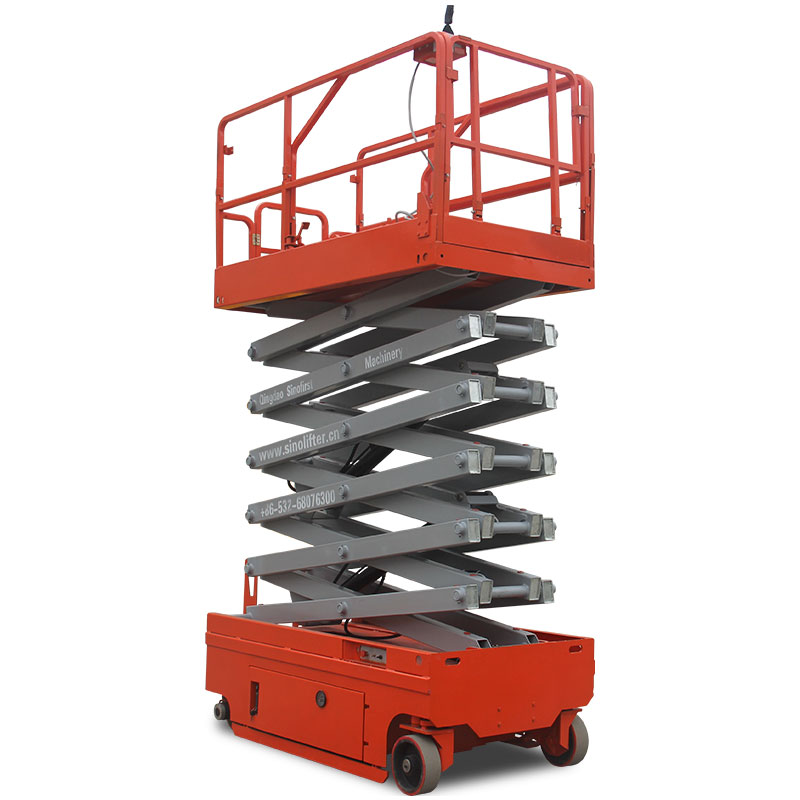

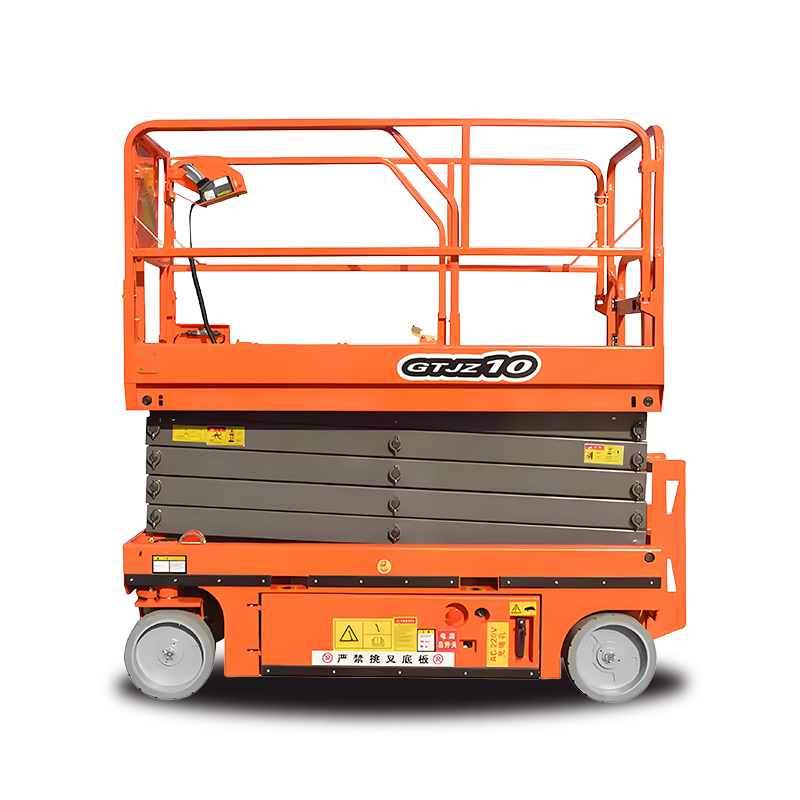

Contact formGTJZ-0810 Specifications
| Parameter | Specification |
|---|---|
| Model (Self-Propelled Hydraulic) | GTJZ-0810 |
| Max Working Height | 9.8m |
| Max Platform Height | 7.8m |
| Safe Working Load (SWL) | 450kg |
| SWL (Extended Platform) | 113kg |
| Platform Dimensions (L×W) | 2270mm × 1130mm |
| Overall Dimensions (L×W×H, Guardrails Up) | 2390mm × 1160mm × 2340mm |
| Overall Dimensions (L×W×H, Guardrails Folded) | 2390mm × 1160mm × 1820mm |
| Platform Extension | 900mm |
| Min Ground Clearance | 106mm / 29mm |
| Wheelbase | 1865mm |
| Turning Radius (Inner/Outer) | 2.3m / 2.5m |
| Lifting/Drive Motor | DC Motor: 24V/4.5KW AC Motor: 24V/3.4KW |
| Lifting Speed | 3-5 m/min |
| Travel Speed (Stowed) | 3.5 km/h |
| Travel Speed (Raised) | 0.8 km/h |
| Battery | 4 × 6V/200Ah |
| Charger | 24V/30A |
| Max Gradeability | 25% |
| Max Allowable Operating Slope | 1.5° (longitudinal) / 3° (lateral) |
| Tires | Φ381 × 127mm |
| Net Weight | 2250kg |
II. Key Configuration List
| Safety & Control Systems | Components & Features |
|---|---|
| Proportional Control | Auto Braking System |
| Platform Self-Locking Gate | Emergency Stop Button |
| Full-Range Travel Function | Hydraulic Hose Burst Protection |
| Non-Marking Tires | Fault Diagnostic System |
| 4×2 Drive System | Tilt Protection System |
| Auto Pothole Protection System | Emergency Lowering System |
| Folding Guardrails | Horn & Buzzer |
| Charging Protection System | |
| Working Hour Meter | |
| Safety Outriggers | |
| Standard Forklift Pockets |
Core Component Specifications
-
Safety Guardrails: 35mm×35mm square steel tubing
-
Platform Deck: 3mm anti-slip checkered plate
-
Boom Arms: 125mm×75mm×5mm rectangular tubing (manganese steel)
-
Chassis: Welded steel plate construction
-
Pivot Pins: Maintenance-free bushings (Germany)
-
Hydraulic Cylinders: Qigong Hydraulics
-
Batteries: Tianneng
-
Hydraulic Oil: Anti-wear Grade N46 (Summer) / N32 (Winter)
-
Control System: HBL Hanbolai / Sciens
-
Hydraulic Drive System: Xinfa (375 series)
-
Motors: Wanxiang
-
Valve Blocks: Qiangtian
-
Charger: Samute SMCZ1 / Tianneng New Energy Special
-
Tires: Juneng / Zhefa
-
Surface Treatment: Powder-coated & electrophoretic finish
