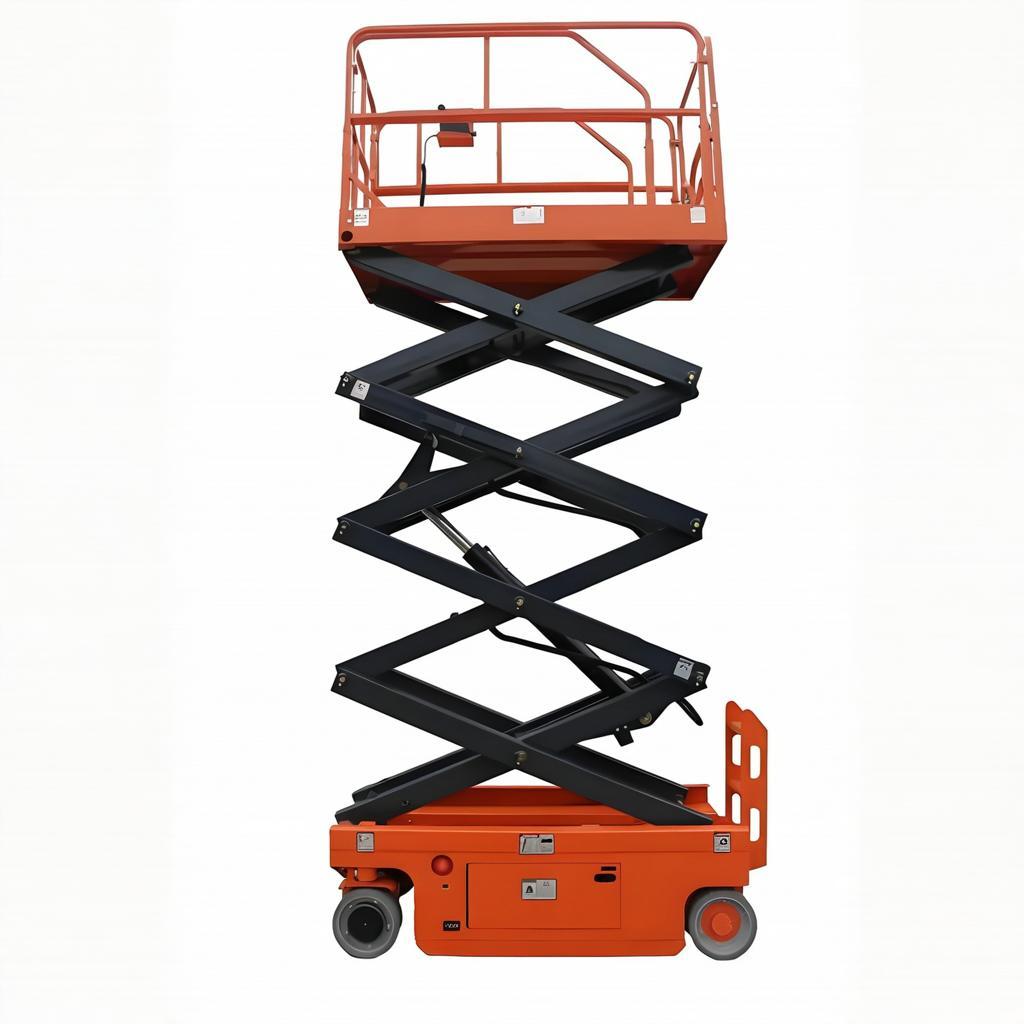

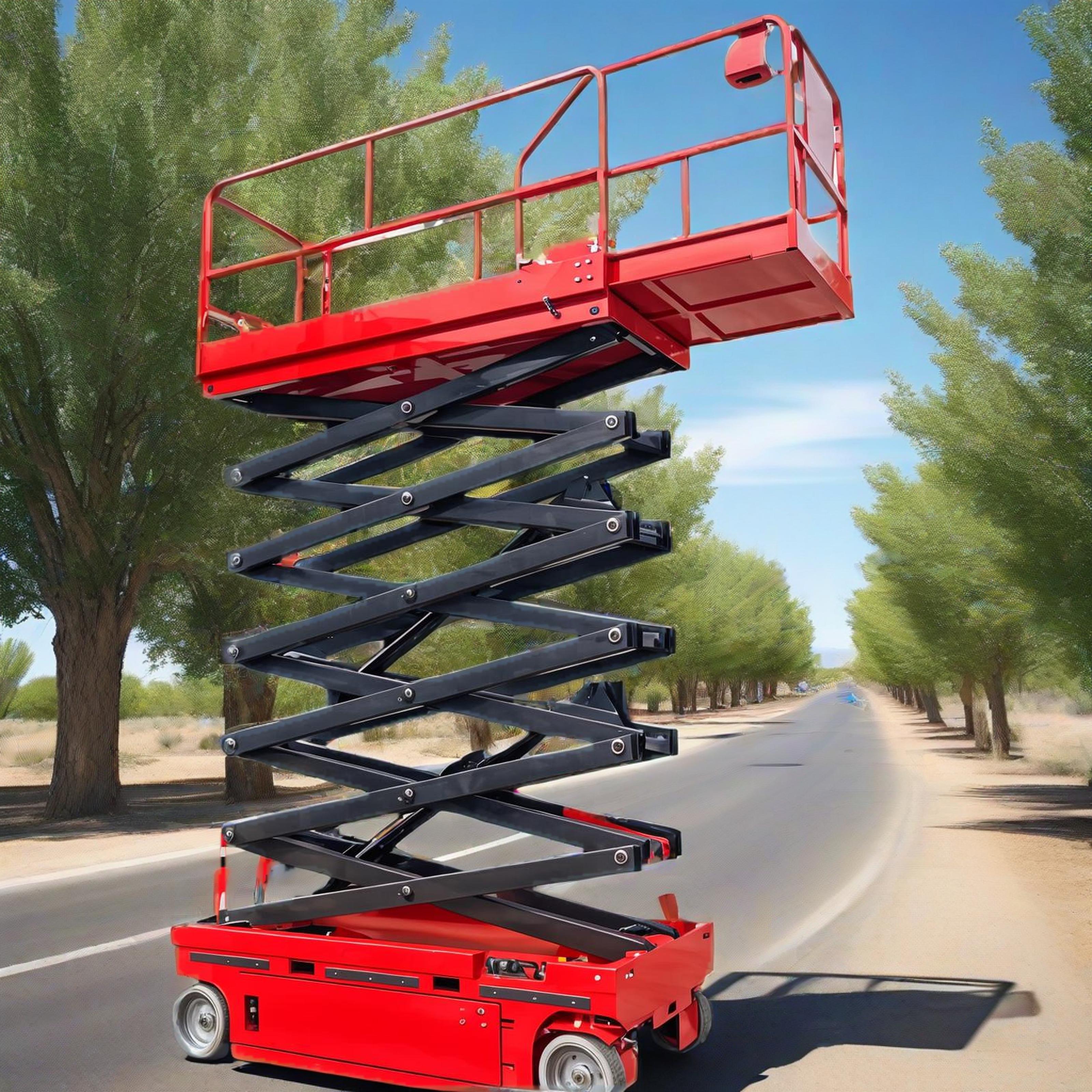

Self-propelled scissor lift aerial work platform, featuring smooth lifting/easy mobility/strong stability. Suitable for various scenarios and multiple high-altitude work environments, including road maintenance for hotels, inspection and repair of road facilities, hotel and guesthouse maintenance, indoor daily repairs, outdoor daily repairs, factories, warehouses, logistics loading and unloading, etc.
Standard Configuration
| 名称 | 参数 |
| maximum working height | 7.8m |
| Maximum platform height | 5.8m |
| safe working load | 450kg |
| Extended platform safety working load | 113kg |
| Work platform dimensions (length × width) | 2270mm×1130mm |
| Overall dimensions of the machine (length × width × height, without folding the guardrail) | 2390mm×1160mm×2210mm |
| Overall machine dimensions (length × width × height, with guardrail folded) | 2390mm×1160mm×1700mm |
| Work surface extension dimension | 900mm |
| minimum ground clearance | 106mm/29mm |
| wheel base | 1865mm |
| Turning radius (inner wheel/outer wheel) | 2.3/2.5m |
| Lifting/Drive Motor | continuous current dynamo：24V/4.5KW
AC motor：24V/3.4KW |
| Lift-up and descent speed | 3-5m/min |
| Machine traveling speed (retracted state) | 3.5km/h |
| Machine traveling speed (lifting state) | 0.8km/h |
| storage battery | 4×6V/200Ah |
| recharger | 24V/30A |
| 最大爬坡能力 | 25% |
| Maximum allowable working angle | 1.5°/3° |
| tyre
|
Φ381×127mm |
| total weight | 2100kg |
| 型号（自行液压驱动） | GTJZ-0608 |
| 最大工作高度 | 7.8m |
| 最大平台高度 | 5.8m |
| 安全工作载荷 | 450kg |
| 延伸平台安全工作载荷 | 113kg |
| 工作平台尺寸(长×宽) | 2270mm×1130mm |
| 整机外形尺寸(长×宽×高，护栏未折叠) | 2390mm×1160mm×2210mm |
| 整机外形尺寸(长×宽×高，护栏折叠) | 2390mm×1160mm×1700mm |
| 台面延伸尺寸 | 900mm |
| 最小离地间隙 | 106mm/29mm |
| 轴距 | 1865mm |
