This 12-meter-long self-propelled hydraulic scissor-type lifting platform integrates an intelligent hydraulic control system, is equipped with digital pressure sensors and adaptive balance valves, achieving high-precision lifting and ensuring stable movement on complex ground. Safety aspects include dual hydraulic locking valves, mechanical emergency descent device and tilt alarm system. It is powered by a hydraulic drive system and is equipped with low-speed hydraulic motors and imported sealing components, enabling maximum stability and response speed during lifting operations.
This 12-meter self-propelled hydraulic scissor-type aerial work platform can be used for continuous operations such as cleaning the exterior walls of airport terminals and replacing ceiling lights in stations. The low noise and environmental-friendly characteristics brought by the DC battery power supply enable this equipment to be applied in indoor precision operations, such as property maintenance in residential areas and art maintenance in exhibition halls, equipment maintenance in factories and workshops, including facility operation and maintenance in sports venues, etc.
GTJZ-1214 Specifications
| Parameter | Specification |
|---|---|
| Model (Self-Propelled Hydraulic) | GTJZ-1214 |
| Max Working Height | 13.8m |

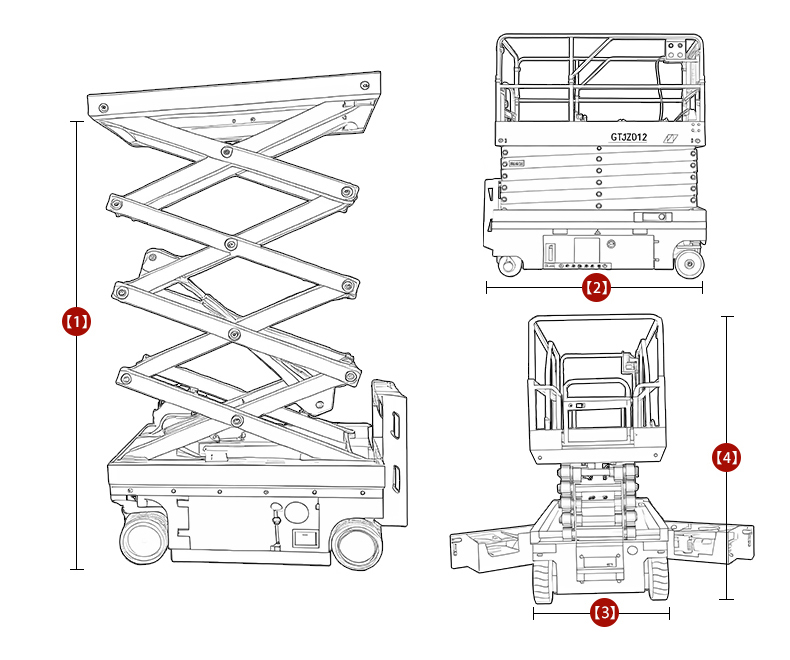

| Max Platform Height【1】 | 11.8m |
| Safe Working Load (SWL) | 320kg |
| SWL (Extended Platform) | 113kg |
| Platform Dimensions (L×W) | 2270mm × 1130mm |
| Overall Dimensions (L×W×H, Guardrails Up)【2/3/4】 | 2390mm × 1160mm × 2600mm |
| Overall Dimensions (L×W×H, Guardrails Folded） | 2390mm × 1160mm × 2060mm |
| Platform Extension | 900mm |
| Min Ground Clearance | 106mm / 29mm |
| Wheelbase | 1865mm |
| Turning Radius (Inner/Outer) | 0m / 2.5m |
| Lifting/Drive Motor | DC Motor: 24V/4.5KW AC Motor: 24V/3.4KW |
| Lifting Speed | 3-5 m/min |
| Travel Speed (Stowed) | 3.5 km/h |
| Travel Speed (Raised) | 0.8 km/h |
| Battery | 4 × 6V/200Ah |
| Charger | 24V/30A |
| Max Gradeability | 25% |
| Max Allowable Operating Slope | 1.5° (longitudinal) / 3° (lateral) |
| Tires | Φ381 × 127mm |
