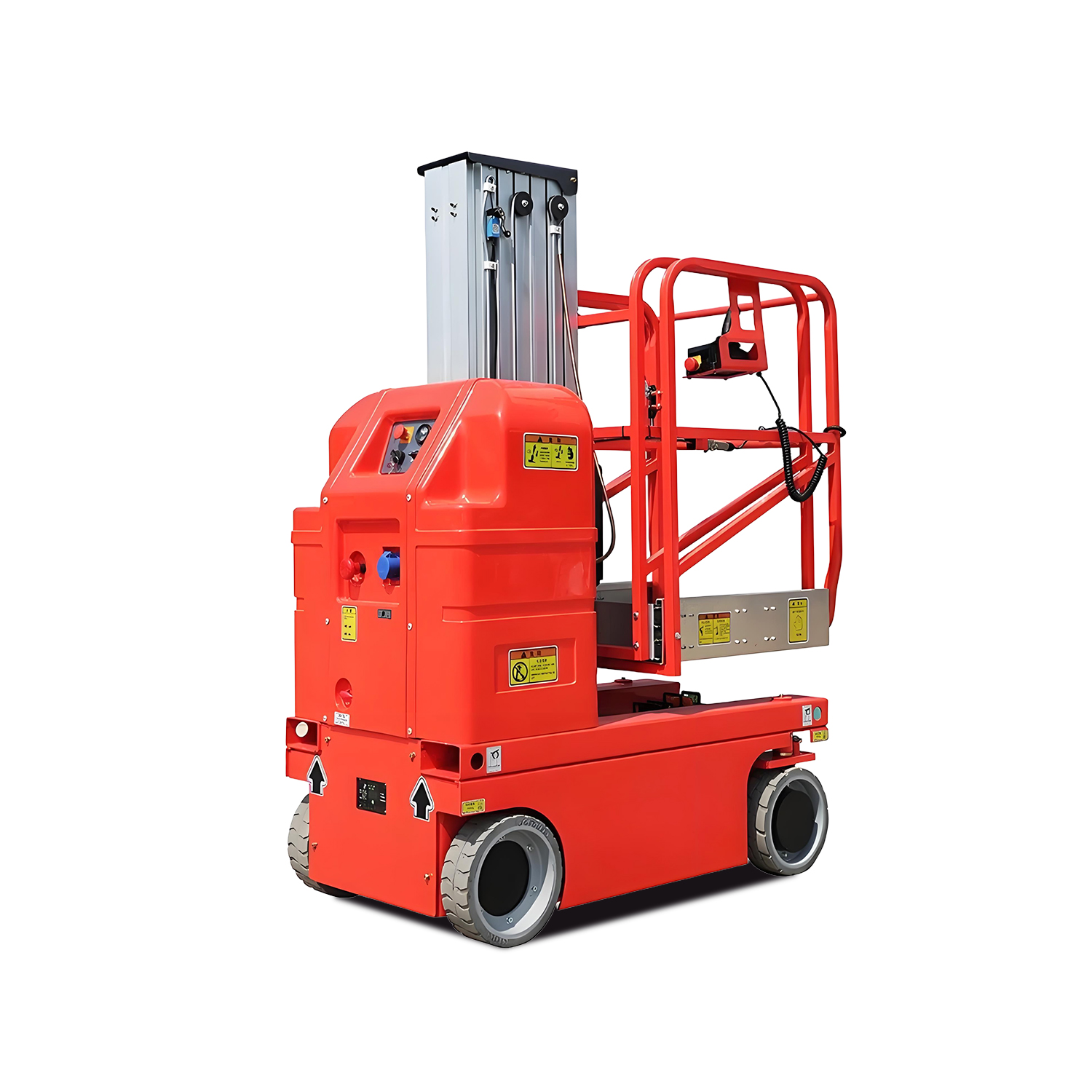

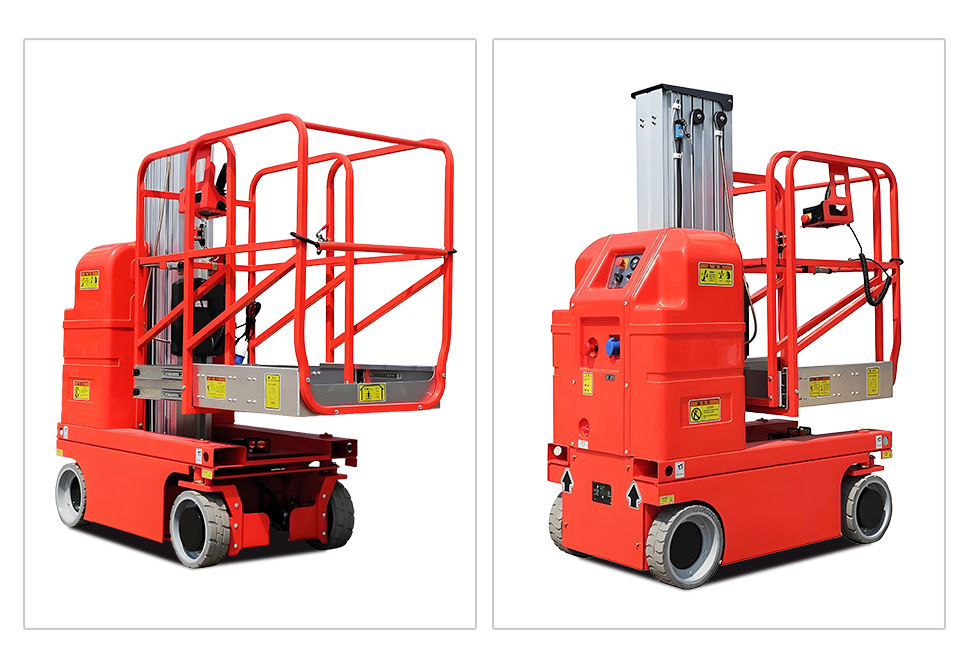

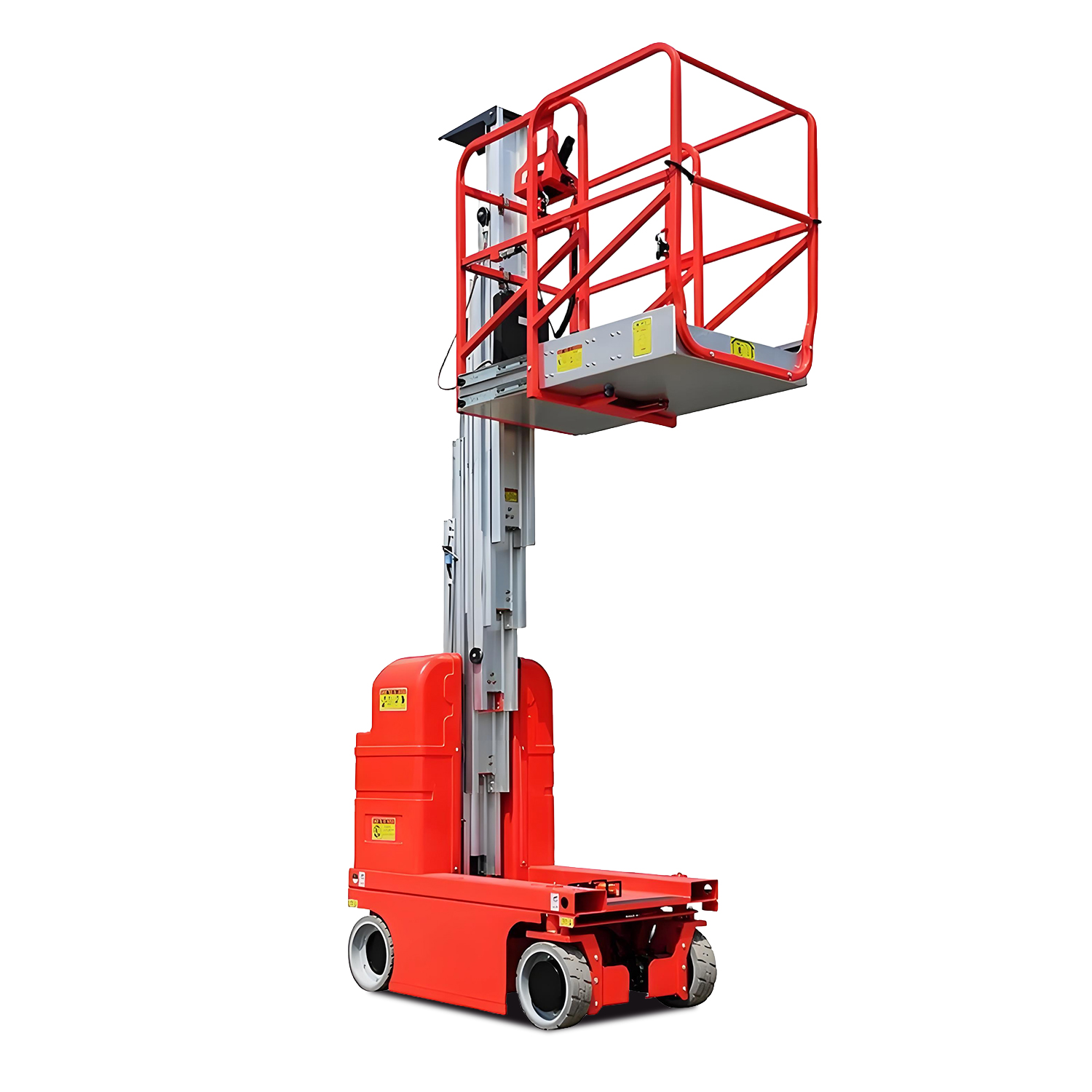

The self-propelled aluminum elevator is made of high-strength aluminum profiles and has minimal deflection and oscillation. It features an automatic walking function, adjustable speed, and can be operated by one person for actions such as moving forward, backward,turning, and ascending/descending. It is suitable for large-scale high-altitude operations in places like stations, docks, and airports, and is an ideal equipment for high-altitude work.
Self-propelled aluminum alloy elevators are suitable for high-altitude operations in large venues such as stations, docks, airports, and sports venues, as well as for replacing lamps, maintaining equipment, and cleaning and maintaining in factory workshops, hotels, and exhibition halls. Their high-strength aluminum alloy structure combines lightweight with stability, allowing for flexible movement indoors and outdoors. They can be operated by a single person without the need for an external power source, and are particularly suitable for narrow spaces and frequent transfer operations.
Model | Platform height | load | Table surface size | Boundary dimension | Dead load | |
MY600-1 | 6 | 120kg | single pole | 0.78*0.7m | 1.36*0.79*2.08m | 850kg |
MY750-1 | 7.5 | 120kg | single pole | 0.78*0.7m | 1.36*0.79*2.08m | 880kg |

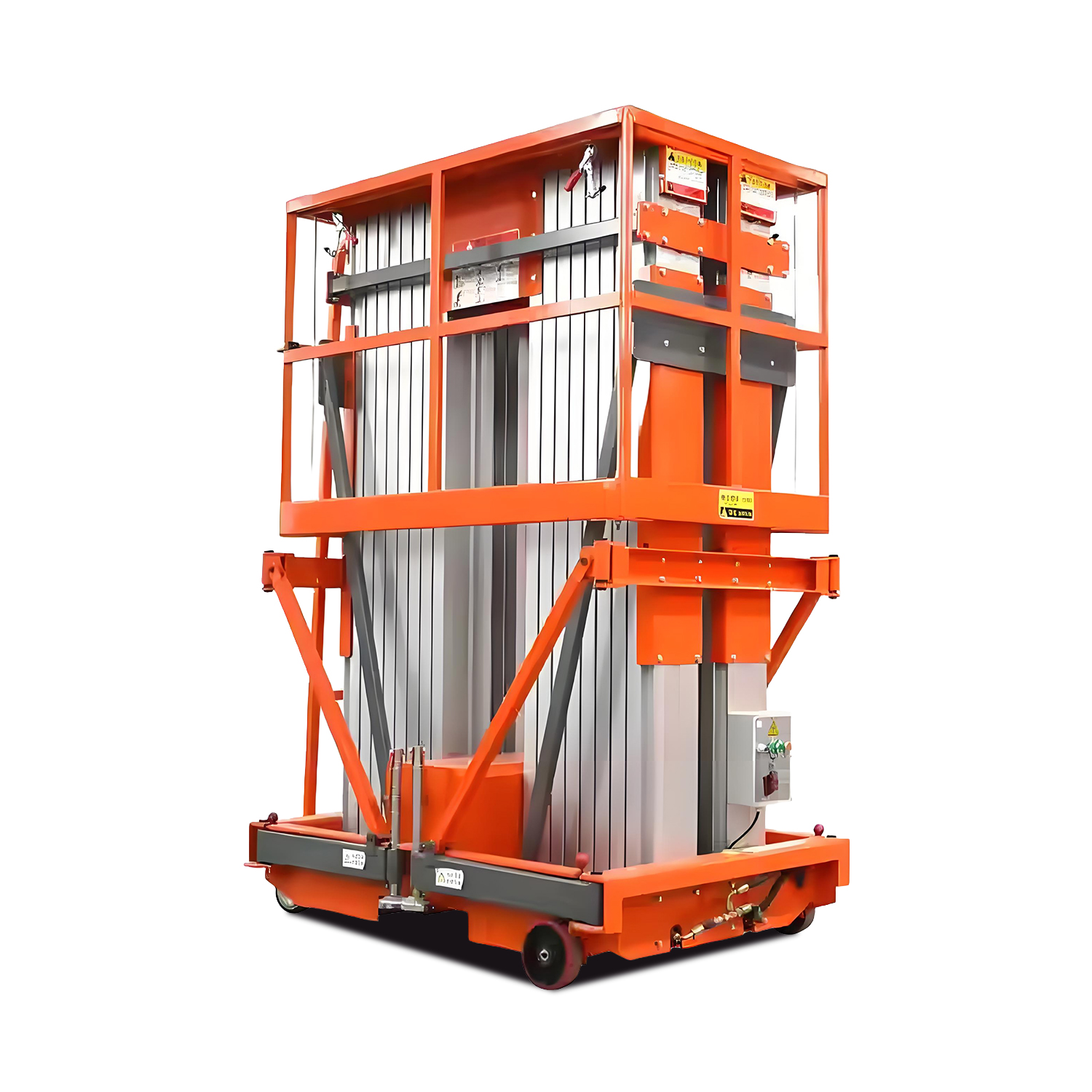

MY750-2 | 7.5 | 200kg | twin column | 1.0*0.7m | 1.5*2.08m | 1100kg |
MY900-2 | 9 | 200kg | twin column | 1.0*0.7m | 1.5*2.08m | 1250kg |
